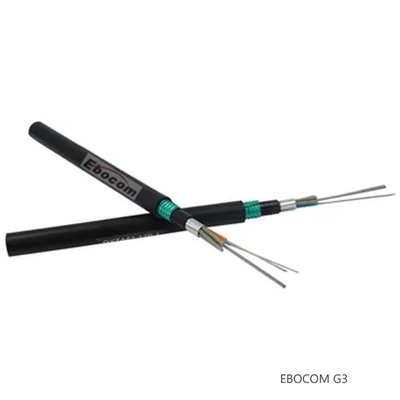

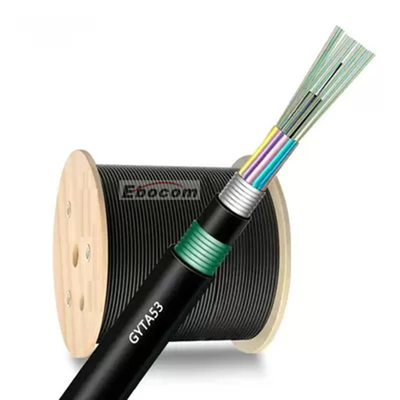

2-144 core GYTS53 GYTA53 underground optical cable SM G652D PE jacket Double Armored long distance communication
PE jacket underground optical cable
,Double Armored underground optical cable
,SM underground optical cable

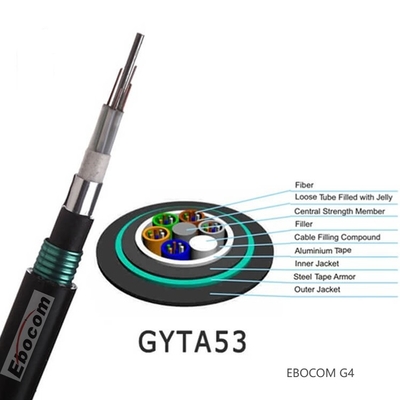

Main structure:
- The center reinforcement is made of steel wire
- Loose tube filling compound
- 100% cable core filling
- PSP enhances moisture resistance
Main Features:
- Good mechanical properties and temperature properties
- High strength loose sleeve, resistant to hydrolysis
- Special tube filling compounds ensure critical protection of the fiber
- Specially designed compact structure is conducive to preventing loose tube shrinkage
- Compression resistance and flexibility
- PE sheath protects the cable from ultraviolet radiation
- We can also provide OEM service, and according to customer’s packaging requirements.
Fiber Specification:
| Fiber style | Unit | SM G652D |
SM G657A1 |
SM G657A2 |
|
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | |
| attenuation | dB/km | ≤0.36/0.23 | ≤0.35/0.21 | ≤0.35/0.21 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 |
| 1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 | |
| Zero dispersion wavelength | nm | 1312±10 | 1312±10 | 1300-1324 | |
| Zero dispersion slope | ps/(nm²×Km) | ≤0.091 | ≤0.090 | ≤0.092 | |
| PMD Maximum Individual Fiber | [ps/√km] | ≤0.2 | ≤0.2 | ≤0.2 | |
| PMD Design Link Value | ps/(nm²×Km) | ≤0.08 | ≤0.08 | ≤0.08 | |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | >=1180,≤1330 | >=1180,≤1330 | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | 9.0±0.4 | 9.8±0.4 |
| 1550nm | um | 10.4±0.8 | 10.1±0.5 | 9.8±0.5 | |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.05 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.05 | ≤0.05 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.03 | ≤0.03 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ≤0.01 | |
| Cladding diameter | um | 125.0±0.1 | 124.8±0.1 | 124.8±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤0.7 | ≤0.7 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤0.5 | ≤0.5 | |
| Curl(radius) | um | ≥4 | ≥4 | ≥4 | |
