High quality GYTA53 Fiber Optic Cable 60 core with G652D strength communication

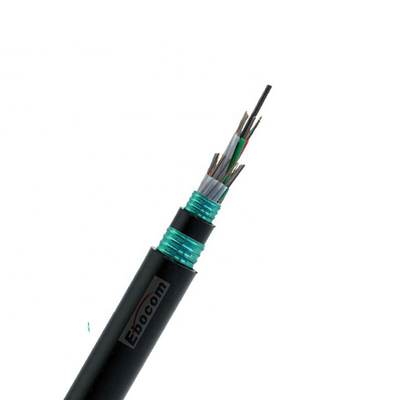

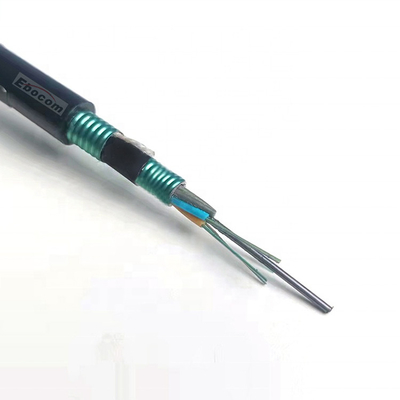

60 core GYTA53 Fiber Optic Cable

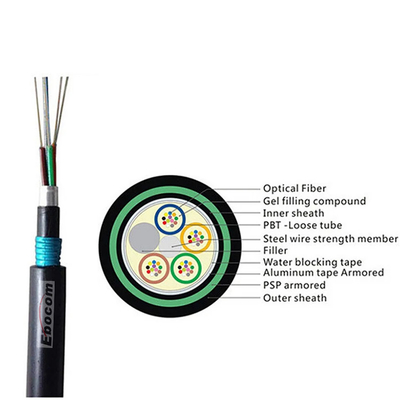

Sheathed loose tube double-sheathed/double-sheathed cables are designed to provide high fiber count with the flexibility and versatility required for today’s most demanding installations, including direct-buried installations. The number of optical fibers is up to 144, and the design is twisted.
Features:
- The loose tube gel filling structure provides excellent fiber protection.
- Double sheathed single armoured(GYTA53) and double sheathed double armoured(GYTA53) for rodent protection and direct burial.
- UV and moisture-proof design
Application field
- Directly buried, underground pipeline.
Specifications
| Cable model | Number of fibers | Number of casings | Number of filled ropes | Cable diameter | Cable weight | Allowable tensile force long/short Term | Allow crushing force long/short Term | Bending radius static / dynamic |
| mm | Kg/Km | N | N | mm | ||||
| GYTA53-2~6 cores | 2~6 | 1 | 4 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA53-8~12 cores | 8~12 | 2 | 3 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA53-14~18 cores | 14~18 | 3 | 2 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA53-20~24 cores | 20~24 | 4 | 1 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA53-26~30 cores | 26~30 | 5 | 0 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA53-32~36 cores | 32~36 | 6 | 0 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA53-38~48 cores | 38~48 | 4 | 1 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
