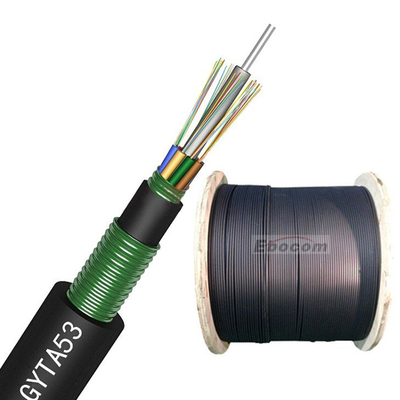

Direct Buried GYTA53 Fiber Optic Cable 4 8 12 24 Core for communication networking
12 Core GYTA53 Fiber Optic Cable
,4 Core GYTA53 Fiber Optic Cable
,24 Core GYTA53 Fiber Optic Cable

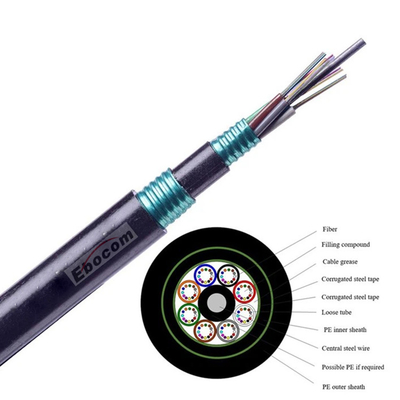

GYTA53 fiber optic cable is a strong and durable fiber optic cable suitable for outdoor direct burial and overhead installation. It adopts double-layer metal armor and jacket structure, which provides excellent protection and anti-interference ability for optical fibers. GYTA53 optical cable has high-strength strip steel, which can increase the tensile force and compression resistance, and adapt to different environments and installation conditions. It can provide stable and reliable data transmission and is suitable for various application scenarios, including network communication, data center and telecom projects, etc.
GYTA53 optical cable has the following characteristics:
- High strength:
GYTA53 optical cable adopts double-layer metal armor and sheath structure, which makes it have excellent tensile and compressive strength, and can adapt to various complex environments and engineering requirements.
- Waterproof and moisture-proof:
The GYTA53 optical cable with double-layer sheath structure can effectively prevent water and moisture from infiltrating, protect the optical fiber from damage, and improve the reliability of the optical cable.
- High adaptability:
GYTA53 optical cable is suitable for outdoor direct burial and overhead installation, and can cope with various harsh environments and weather conditions.
- Ultra-long transmission distance:
GYTA53 optical cable can support a large transmission distance and is suitable for long-distance communication needs.
- High bandwidth:
As a kind of optical fiber cable, GYTA53 optical cable can provide high-bandwidth transmission capability and support high-speed data and communication requirements.
- High reliability:
GYTA53 optical cable adopts high-quality materials and advanced production technology, has excellent quality and reliability, and runs stably for a long time.
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.25 | ||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
