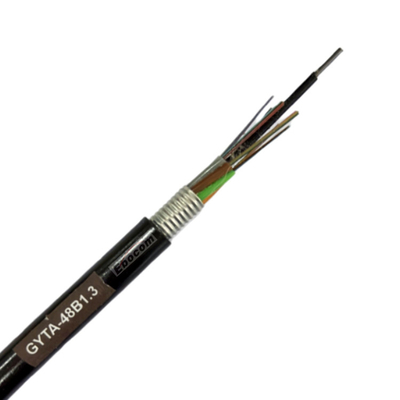

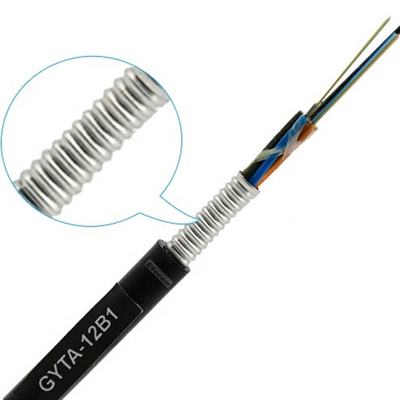

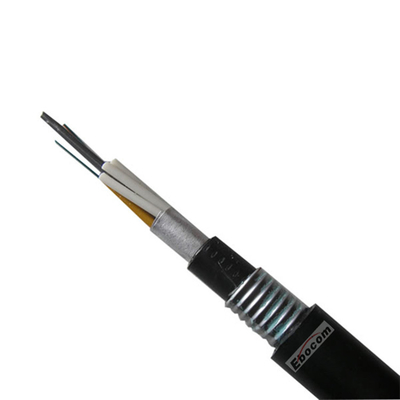

Outdoor GYTA Fiber Optic Cable 80 core steel directly burial internet construction
GYTA Outdoor Fiber Optic Cable
,80 core Outdoor Fiber Optic Cable
,steel Outdoor Fiber Optic Cable
GYTA53 double armor double shield direct buried optical cable is a high performance optical cable specially designed for outdoor direct buried environment. The optical cable adopts double-layer metal armor and sheath structure, which provides excellent protection and resistance to external damage for the optical fiber.
Features and advantages of GYTA53 optical cable:
- Durable and reliable: The metal armor and double-layer sheath structure make the optical cable have excellent durability and reliability, which can resist damage from the external environment and maintain stable transmission performance.
- Strong anti-interference ability: Metal foil shielding provides effective electromagnetic shielding ability, reduces the impact of external interference on optical signals, and ensures stable transmission quality.
- High tensile and compressive capacity: the high-strength strip steel increases the tensile and compressive capacity of the optical cable, which is suitable for places that require long-distance transmission and direct burial installation under complex terrain conditions.
- Water and moisture resistance: The double-layer sheath structure can effectively prevent water and moisture from penetrating, protect the optical fiber from damage, and improve the reliability of the optical cable.
- Direct buried design: suitable for direct buried applications, with good compression resistance and durability, suitable for various terrain and environmental conditions.
Cable performance:
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Full color spectrum | |
| Filer | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Inner armoured | Material | Plastic coated aluminum strip |
| Inner jacket | Material | PE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel tape |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 3000N 0.1dB,0.15% 3000N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 3000N/100mm 0.1dB 3000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
