Non Metallic GYFTY Fiber Optical Cable Non Armored 24 48 72 Core networking

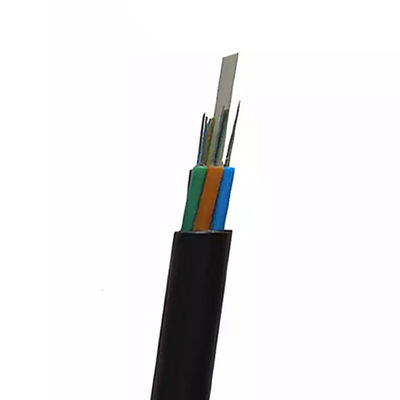

24 Core GYFTY Fiber Optical Cable
,72 Core GYFTY Fiber Optical Cable
,24 Core Fiber Optical Cable
GYFTY cables are non-metallic and are used in power transmission systems, minefields and high electromagnetic places, mainly for overhead or pipeline use. Center reinforcement thing FRP. We offer singlemode GYFTY cables and multimode GYFTY cables. More parameters can be done according to your requirement.
Characteristics of product:
1.Small diameter,lighter and softness.
2.Reasoning designation,excellent water-blocking performance.
3.FRP as non-metallic strength member.
4.Good electromagnetism resistance ability.
5.Thunder proof Single Mode optical fiber cable.
Application
Aerial and duct application
Access network and local network in high electromagnetic interfering and frequently lighting areas
Specification:
| Fiber count | 2~36 | 38~60 | 62~72 | 74~84 | 86~96 | 98~108 | 110~120 | 122~132 | 134~144 | |
| Max. cores in tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Cable diameter | 12.7 | 13.3 | 13.9 | 14.7 | 15.5 | 16.3 | 17.1 | 17.9 | 18.7 | |
| Weight | 150 | 165 | 182 | 205 | 225 | 250 | 275 | 300 | 330 | |
| Tensile strength (N) | Long term | 1000 | ||||||||
| Short term | 3000 | |||||||||
| Crush Resistance (N/100MM) | Long term | 1000 | ||||||||
| Short term | 3000 | |||||||||
| Bending Radius (MM) | Dynamic | ≥20 * Cable diameter | ||||||||
| Static | ≥10 * Cable diameter | |||||||||
| Operating Temperature (ºC) | -40~+60 | |||||||||
| Application | Aerial ,Direct burial | |||||||||
