GYXTW Fiber Optic Cable Central Tube 12 core Outdoor Aerial for connecting communication equipment
Aerial Outdoor Fiber Optic Cable
,GYXTW Outdoor Fiber Optic Cable
,12 core Outdoor Fiber Optic Cable

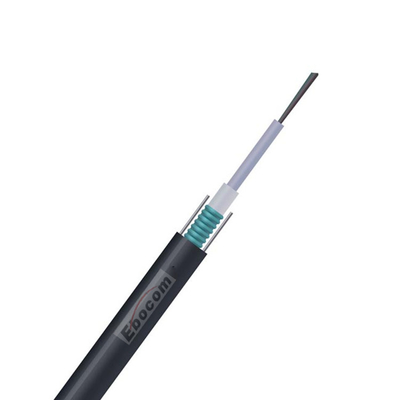

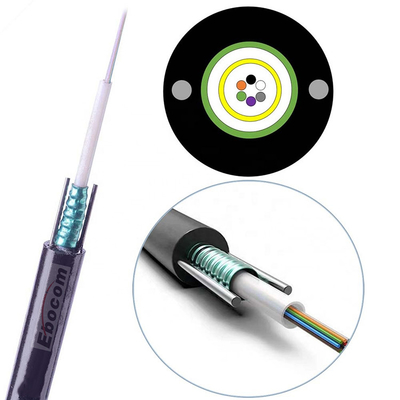

In the GYXTW type optical cable structure, the single-mode or multi-mode optical fiber is covered with a unit tube, and the unit tube is filled with waterproof filler. The outside of the tube is longitudinally covered by a layer of double-sided plastic-coated corrugated steel tape, and the waterproof material is used between the steel tape and the loose tube to ensure the compact structure and longitudinal waterproof of the optical cable. There are two parallel steel wires on the loose tube for reinforcement, and then outsource PE sheath to form an optical cable.
Features
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the cable
- excellent mechanical and environmental properties
- Compact structure and lightness, flexible and good bend-resistant performance
- With small cable diameter, light cable weight, self-supporting
- Operating Temperature : -40 ~ +60℃
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.25 | ||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
