Outdoor GYXTW cable Light-Armored 2 4 6 8 10 12 14 Core for Internet installation

Place of Origin Shandong,China
Brand Name EBOCOM
Certification ISO TLC
Model Number GYXTW
Minimum Order Quantity 2000M
Price EXW ≥2000m $0.048/M ≥5000m $0.044/M
Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time 5-8 days
Payment Terms T/T
Supply Ability 50000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Type SM/MM/OM1/OM2/OM3 Strengthen Member 2 Phosphating Steel Wire
Cores 2-24 Cores Sheath Material Single PE
Armor Corrugated Steel Tape Operating Temperature -40ºC~+70ºC
Loose Tube PBT
Leave a Message
Product Description

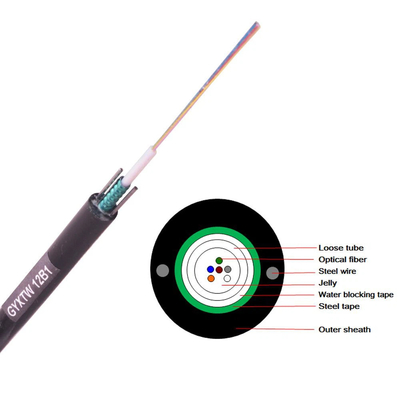

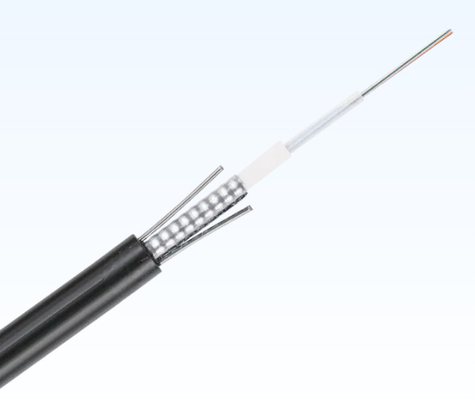

GYXTW fiber optic cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

Outdoor  GYXTW cable Light-Armored 2 4 6 8 10 12 14 Core for Internet installation 0

GYXTW Cable Application:
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling

GYXTW Cable Features:
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Mechanical Parameters:

Cable
Type
Fiber
Count
Cable
Diameter(mm)
Cable Weight
kg/km
Tensile
Strength Long
/Short Term N
Crush Resistance
Long/Short Term N
/100mm
Bending Radius
Static
/Dynamic mm
GYXTW-2-12 2-12 7.0-8.5 85-90 600/1500 300/600 15D/30D





Note: Parameter only for reference. For more details, please contact our sales
