12 Core GYTA Duct Stranded Optical Cable ISO14001 Certified and Strong Tensile for Data Center Wiring System
GYTA Duct Stranded Optical Cable
,12 Core Optical Cable
,Data Center Optical Cable

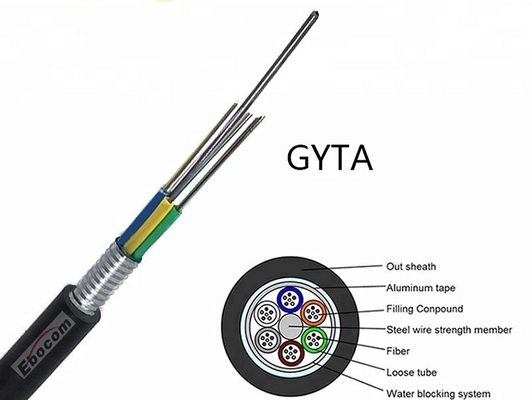

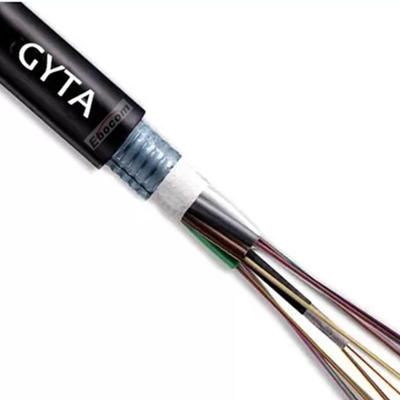

GYTA (Metal Reinforced, Loose-Sleeve Laminated Filled, Aluminum-Polyethylene Bonded Jacketed Outdoor Fiber Optic Cable) is a single-mode or multi-mode fiber optic cable that is enclosed in a loose sleeve made of high modulus plastic filled with a waterproof compound. At the center of the core is a metal reinforcement core or, for some cores, a layer of polyethylene (PE) extruded over the metal reinforcement core. The loose tube (and filler rope) is twisted around the central reinforcement to form a compact and round core with gaps filled with a water-blocking compound. The aluminum-plastic composite tape is wrapped longitudinally and then extruded with a polyethylene sheath.
GYTA Fiber Cable Features:
- PBT loose sleeve material has good hydrolysis resistance, and the tube is filled with special oil paste to protect the fiber.
2. PE sheath has good resistance to solar radiation.
3. The smooth outer sheath allows the fiber optic cable to have a smaller coefficient of friction in the installation.
4. The following measures are used to ensure the waterproof performance of the fiber optic cable: special waterproof compound filling inside the loose sleeves; complete cable core filling; aluminum-plastic composite tape with moisture-proof layer.
5. Aluminum tape side pressure index is not as good as steel tape, but the effect of moisture-proof and rust-proof is better than steel tape, GYTA is used for long life when threading.
Application:
– Long-distance communication, inter-office communication
– Especially suitable for applications requiring high moisture-proof performance, such as ducted
MainTechnical Parameters:
| Technical parameters of GYTA duct fiber cable | |||
| Fiber count | Cable structure | Maximum number of fiber cores | Weight of GYTA cable (kg/km) |
| 2-30 | 1+5 | 6 | 62 |
| 32-60 | 1+5 | 12 | 72 |
| 62-72 | 1+6 | 12 | 86 |
| 74-96 | 1+8 | 12 | 110 |
| 98-120 | 1+10 | 12 | 130 |
| 122-144 | 1+12 | 12 | 155 |
| 146-216 | 1+6+12 | 12 | 155 |
| 218-300 | 1+9+15 | 12 | 190 |
| Tensile Strength(N)Short term | ≥1500N | ||
| Tensile Strength(N)Long term | ≥600N | ||
| Crush Resistance-Short term | ≥1000(N/100mm) | ||
| Crush Resistance-Long term | ≥300(N/100mm) | ||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
