2-24 Core GYXTW Central Tube Fiber Optic Cable with 24m Distance and ISO45001 Certification
24m Central Tube Fiber Optic Cable
,ISO45001 Central Tube Fiber Optic Cable
,GYXTW Central Tube Fiber Optic Cable

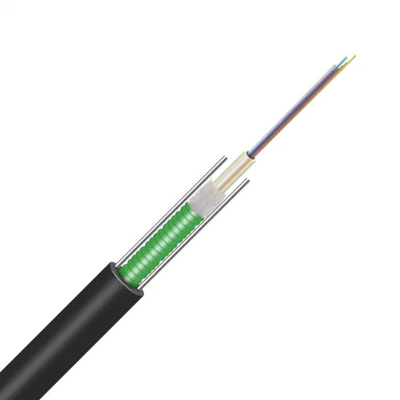

GYXTW (metal reinforcing member, steel-polyethylene bonded jacket with steel wire center bundle tube type fully filled outdoor fiber optic cable for communication), the structure of the cable is a loose tube placed in the center of the cable, the single-mode or multi-mode optical fiber into a high modulus plastic made of water-resistant compound filled loose tube. The outer part of the pine tube is filled with a water-blocking compound. The cable core is flanked by a polyethylene jacket with two parallel steel wires as reinforcements.
Product Features:
– Good mechanical properties and temperature characteristics
– The loose tube material itself has good hydrolysis resistance and high strength
– The tube is filled with special oil paste, which provides critical protection for optical fiber
– Good compression resistance and flexibility
– Double-sided plastic coated steel strip (PSP) improves the moisture permeability of the fiber optic cable
– Two parallel steel wires ensure the tensile strength of the cable
– Small diameter, light weight and easy to lay
MainTechnical Parameters:
- Cable Parameter
| Item | Specification | |
| Fiber Count | 1-24 | |
| Color coated fiber | OD | 0.25±0.015mm |
| Color | Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, turquoise | |
| Loose Tube | OD | 1.8±0.05mm |
| Material | PBT | |
| Stiffener | OD | 0.7mm±0.1mm |
| Material | Steel wire | |
| Outer Sheath | OD | 8.0±0.3mm |
| Material | PE | |
| Color | Black | |
- Optical Characteristics
| Fiber Type | Attenuation (+20℃) | Band width | Numerical Aperture | Cable cutoff wavelength | ||||
| @850 nm | @1300 nm | @1310 nm | @1550 nm | @850 nm | @1300 nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450 nm |
| 50/125 µm | ≤3.3dB/km | ≤1.2dB/km | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | — | |
| 625/125 µm | ≤3.5dB/km | ≤1.2dB/km | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NA | — | |
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
