Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater

Place of Origin Shandong,China
Brand Name EBOCOM
Certification ISO
Model Number GYTA33
Minimum Order Quantity 2000M
Price EXW ≥2000m $0.74/M ≥5000m $0.71/M
Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time 5-8 days
Payment Terms T/T
Supply Ability 5000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count Outer Diameter Weight


Allowable Tensile Strength (N)
Allowable Crush Load (N/100mm) Bending Radius(mm) (core) (mm)
(kg/km) Short Term Long Term Dynamic
Static 2~30 15.0 424
10000 4000 5000 3000
25D 12.5D 32~60 16.3
483 10000 4000 5000
3000 25D 12.5D 62~72
17.5 558
Leave a Message
Product Description

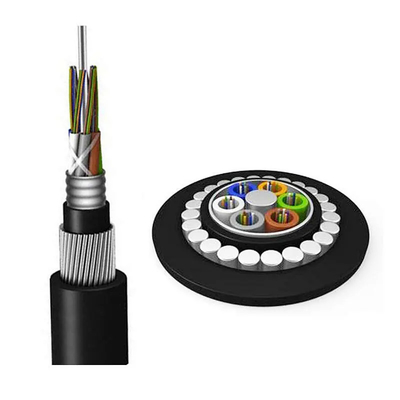

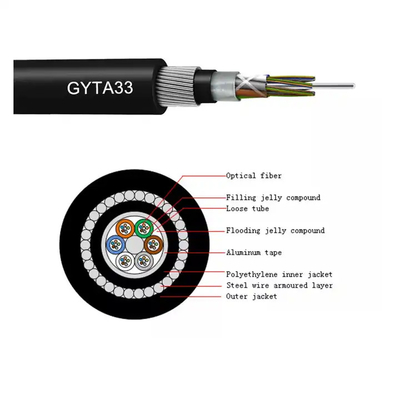

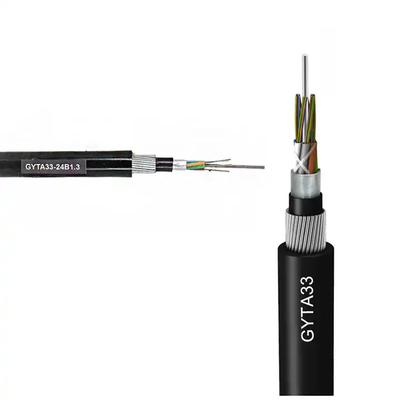

GYTA33 optical cable is made by inserting SM/MM optical fiber into a loose tube, and the tube is filled with waterproof compound. The center of the cable core is a metal reinforcing core. A layer of polyethylene is extruded outside the reinforcing core. The loose tube is twisted around the central reinforcing core to form a compact circular cable core. The gaps in the cable core are filled with water-blocking fillers. . After being wrapped longitudinally with plastic-coated aluminum tape (APL), a layer of polyethylene inner sheath is extruded, and then armored with single or double layers of fine round steel wire, and finally the polyethylene outer sheath is extruded to form a cable.

Rodent protection GYTA33 Outdoor Fiber Optic Cable 36 48 60 Core Lake Crossing for Undertwater 0

Applications:

River and lake crossing, coastal ,direct buried, rodent protection



Fiber count(core)
Loose tube diameter(mm)
Nominal Thickness of outer jacket (mm)
Cable diameter Height (mm)
Cable weight (kg/km)
12
1.9±0.1
1.6
12.0±0.2
145
36
1.9±0.1
1.6
13.2±0.2
155
48
1.9±0.1
1.6
13.2±0.2
155

Characteristics:

  1. Suitable for waterfront scenes
  2. The loose tube is filled with special grease to provide critical protection for the optical fiber.
  3. The central reinforced component of phosphated steel wire has high modulus and corrosion resistance.
  4. Longitudinal wrapping of double-sided coated corrugated steel strips and thin round steel wire wrapping and armoring ensures the mechanical compression, tensile and ballistic properties of the optical cable, and meets application requirements such as hill climbing, direct burial, and underwater laying.
