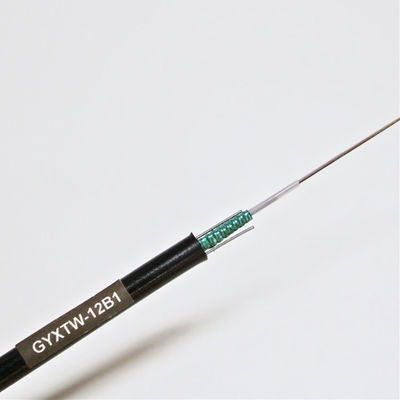

Outdoor GYXTW 12 Core G652D Light Armored Fiber Optic Cable With Central Loose Tube Structure
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Structure | Loose Tube | Loose Tube | PBT |
|---|---|---|---|
| Steel Wire | 0.6mm/0.7mm/0.8mm/1.0mm | Oem | Accepted |
| Life Time | 25 Years | Cable Diameter | 6.0mm, 7.0mm,8.0mm |
| Installation | Aerial & Duct | Fiber Types | G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4 |
| Feature | Armoured Cable | Outer Jacket | PE(Polyethylene) |
| Port | Qingdao/Ningbo/Shanghai | Outer Sheath Color | Black |
| Highlight | Outdoor GYXTW Fiber Optic Cable,12 Core GYXTW Fiber Optic Cable |
||
Product Description
Product Description
The GYXTW 12 Core Light Armored Fiber Optic Cable is a high-performance, versatile solution designed for both indoor and outdoor telecommunications applications. Featuring a central loose tube structure, it provides excellent protection for the optical fibers while ensuring reliable transmission over long distances. With its lsteel tape and wirest armored design, this cable is perfect for environments that require extra durability without sacrificing flexibility. The GYXTW fiber optic cable is commonly used in duct and direct burial applications, offering robust protection from environmental and mechanical stress.
Key Features:
- Customized outer diameter, can be 6MM/7MM/8MM
- 12 Core Fiber: Provides stable and high-speed data transmission, ideal for medium to long-distance communication.

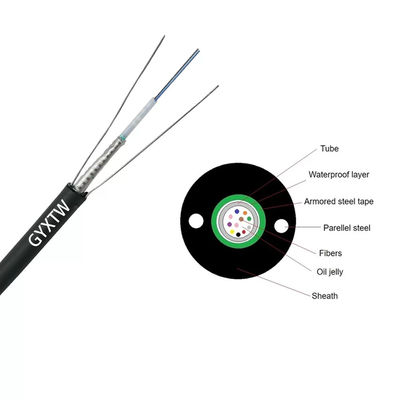

- Central Loose Tube Structure: Houses optical fibers within a gel-filled loose tube, offering enhanced protection against moisture and environmental factors.
- Light Armored Design: The steel tape armor adds extra protection without adding significant weight, making it suitable for various installation environments.
- UV and Water Resistant: The outer sheath ensures the cable withstands harsh outdoor conditions, including UV exposure and water ingress.
- High Tensile Strength: Reinforced with steel wire, the cable is resistant to mechanical stress and tension during installation.
- Single Mode G.652D Fiber: Low attenuation and excellent transmission over long distances, making it ideal for backbone and access networks.
Applications:
- Outdoor duct and direct burial installations
- Backbone networks for telecommunications
- Long-distance data transmission
- Local area networks (LAN) and metropolitan area networks (MAN)
- Industrial and residential applications
Technical Specifications:
| Specification | Details |
|---|---|
| Fiber Type | Single Mode G.652D |
| Core Count | 12 Core |
| Armor Type | Light Steel Tape Armor |
| Outer Sheath | Polyethylene (PE) |
| Tensile Strength | Up to 1500N |
| Operating Temperature | -40°C to +70°C |
| Attenuation at 1310nm | ≤ 0.35 dB/km |
| Attenuation at 1550nm | ≤ 0.20 dB/km |
Why Choose GYXTW 12 Core Fiber Optic Cable?
- Reliable Performance: Designed for both short and long-distance data transmission with minimal signal loss.
- Durable Protection: The light armored design offers protection from physical damage and environmental factors, making it suitable for outdoor installation.
- Flexible Applications: Ideal for backbone networks, local area networks (LAN), and even industrial applications.
- Cost-Effective: Provides high performance at competitive pricing, offering great value for large-scale projects.
- OEM Support: We offer customization options, including cable length, sheath material, and core count to meet specific project needs.
Contact Us:
For more information about the GYXTW 12 Core Light Armored Fiber Optic Cable or to request a quote, please feel free to reach out to us. We are committed to providing high-quality, reliable fiber optic solutions for your telecommunications needs.
