Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores with Power Cable
Armoured Composite Hybrid Optical Fiber Cable
,GYXTW Composite Hybrid Optical Fiber Cable

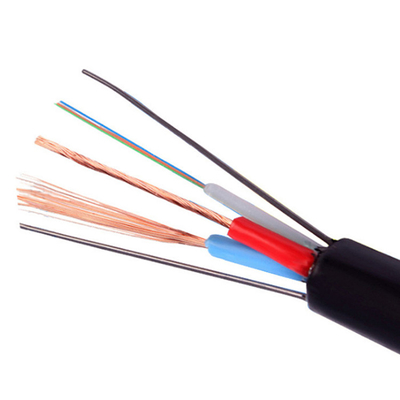

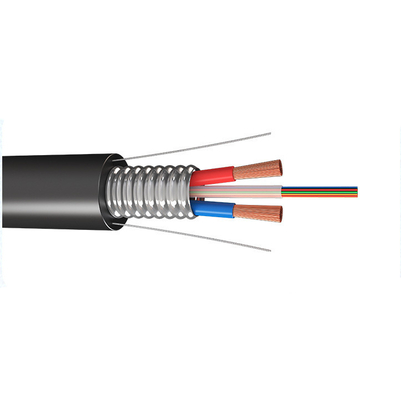

The GYXTW Photoelectric Composite Hybrid Optical Fiber Cable combines optical fibers for high-speed data transmission and power cables for electricity supply, offering an efficient "two-in-one" solution. Designed for outdoor and industrial applications, this cable is ideal for environments where both data and power are required. Its central loose tube structure provides excellent mechanical strength, while the armoured design ensures durability and protection from external damage. The cable supports various power conductor sizes (0.5mm², 1.0mm², 1.5mm², 2.0mm²), making it suitable for different power requirements.
Applications
- Power and data transmission for remote monitoring systems
- Security and surveillance systems (CCTV)
- Outdoor communication networks and smart grids
- Industrial automation and IoT applications
Features
- High-performance optical fiber: Available in single-mode or multi-mode fibers for fast, stable transmission
- Power cable integration: Multiple conductor sizes to meet different power demands

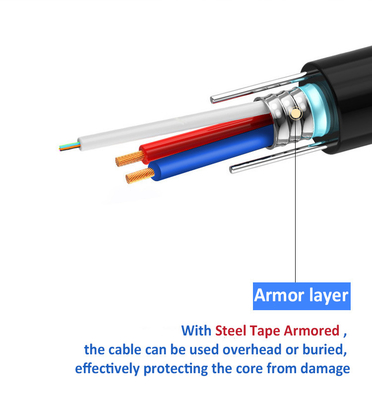

- Excellent mechanical strength: Central loose tube structure with steel or aluminum tape armouring for enhanced protection
- Weather-resistant: Suitable for outdoor use, with UV and moisture-resistant outer sheath
- Customizable configuration: Optical cores (2~24 fibers) and power conductor sizes (0.5mm² to 2.0mm²)
Technical Specifications
| Item | Description |
|---|---|
| Optical Fiber Type | Single-mode G652D, G657A1, or Multi-mode OM1/OM2/OM3 |
| Fiber Core Count | 2~24 cores |
| Power Cable Sizes | 0.5mm², 1.0mm², 1.5mm², 2.0mm² |
| Structure | Central loose tube, steel tape (GYXTW), aluminum tape (optional) |
| Armouring Material | Steel tape or aluminum tape |
| Sheath Material | PE (UV-resistant), optional LSZH |
| Operating Temperature | -40°C to +70°C |
| Tensile Strength | ≥1500N |
| Crush Resistance | ≥1000N/100mm |
| Cable Outer Diameter | Depends on fiber count and power cable size |
| Sheath Color | Black (standard), other colors available on request |
Advantages
- Integrated Design: Reduces installation cost and complexity by combining power and fiber in a single cable.
- Wide Range of Applications: Perfect for outdoor installations, surveillance systems, and industrial control.
- Durability: Armoured structure provides excellent protection in harsh environments.
- Customizable: Available in various configurations to meet specific project requirements.
