GYXTW OM3 Multimode Fiber Optic Cable – 2 to 24 Core Outdoor Armored Central Tube Cable
UTP CAT5e Network Cable
,SFTP CAT5e Network Cable
,FTP CAT5e Network Cable
Reliable Performance in Demanding Environments

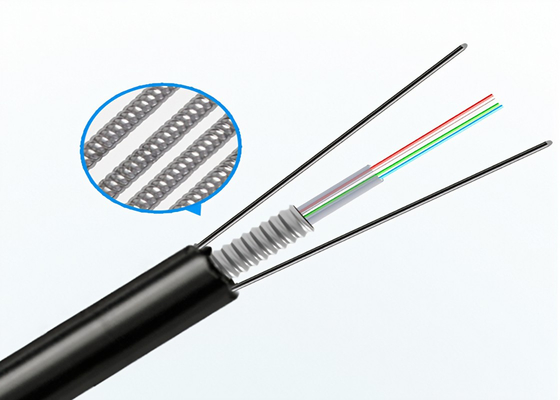

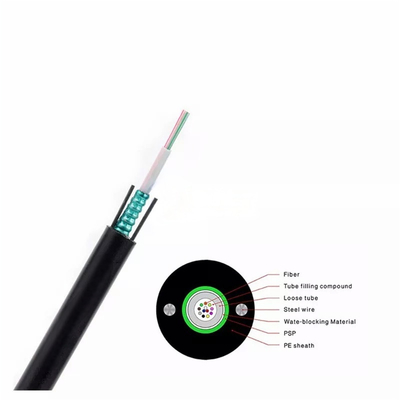

GYXTW OM3 multimode fiber cable is designed for short-distance, high-bandwidth outdoor transmission, combining rugged construction with excellent data-carrying capability. The central loose-tube structure with up to 24 OM3 multimode fibers, filled with waterproof gel to ensure stable optical performance even in harsh outdoor conditions.
Reinforced by two parallel steel strength wires and protected by corrugated steel tape armor, this cable is built to handle crush, moisture, rodents, and UV exposure. Whether installed aerially or through duct routes, GYXTW provides stable gigabit or 10G Ethernet transmission for campus networks, CCTV systems, data center extensions, or industrial park backbones.
Features & Benefits
-
OM3 multimode fibers (50/125µm) – Suitable for 10G Ethernet over 300m
-
Gel-filled loose tube – Blocks water ingress and cushions fiber during impact
-
Steel wire strength members – High tensile capacity for aerial spans
-
Corrugated steel armor – Reliable protection from rodents and crushing forces
-
UV-resistant HDPE jacket – Long-term outdoor durability
-
Easy to install – Compact diameter, lightweight, suitable for conduit or pole
Recommended Applications
-
Building-to-building fiber links (e.g. schools, hospitals, factories)
-
Short-haul outdoor backbone or feeder networks
-
High-speed CCTV and access control systems
-
Outdoor campus and enterprise network extensions
-
Duct, direct burial or aerial self-supporting installations
