Cat6a UTP Ethernet Cable 4 Pair wire 0.48 0.5 0.52 Copper Conductor 1000ft for Networking
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Minimum Order Quantity | 3050m | Packaging Details | 305m/box |
|---|---|---|---|
| Delivery Time | 7-15 Work Days | Payment Terms | L/C, T/T, Western Union |
| Place Of Origin | Shandong ,China | Brand Name | Ebocom /OEM |
| Certification | ISO9001,ISO45001,ISO14001 | Model Number | CAT6A Cable |
| Copper Conductor | 0.48/0.5/0.52 | Diameter | 0.4-0.6mm |
| Highlight | 1000ft Cat6a UTP Ethernet Cable,Networking Cat6a UTP Ethernet Cable,4 Pair Cat6a UTP Ethernet Cable |
||
Product Description
Product introduction:

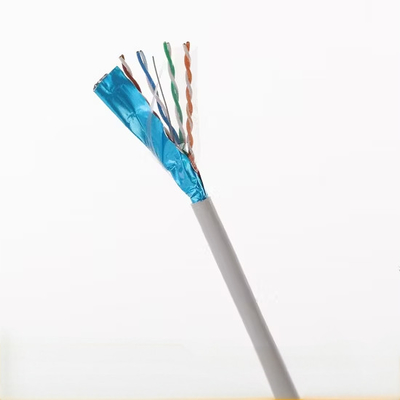

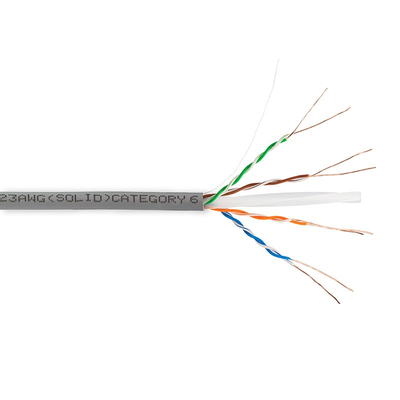

Category 6A cable (Cat 6A) is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.
Specifications
| Cable Diameter | 6.2 mm | Color | blue |
| Connector Type | Booted, Snagless | Conductor type | 0.48/0.5/0.52mm |
| Type | Ethernet Cable | Cable diameter | 0.4-0.6mm |
| Category Performance Rating | Cat 6A | Brand | OEM/EBOCOM |
| Indoor/Outdoor | Indoor | Application | networking |
| Jacket Material | PVC (Polyvinyl Chloride) | Insulation | HDPE |
| Jacket Rating | Standard / Non-Rated | Packing | carton box |
| Shield Type | UTP | Wire Gauge | 24 AWG |
| Shielded/Unshielded | Unshielded | Modle | HSYV-6a 4X2X0.5...... |
|
Physical &electric properties |
Max.Conductor DC Resistance20*C (ohms/km): 67 Insulation Resistance5000MQ*Km Dielectric Strength:DC 2500V 2S Operating Temperation:-40℃-+80℃ |
