Flame Retardant Cable MGTSV SM MM 12 24 48 96 Cores for Duct Mine Mining Application
MGTSV Flame Retardant Cable
,Mine Mining Flame Retardant Cable
,SM MM Flame Retardant Cable
Product description

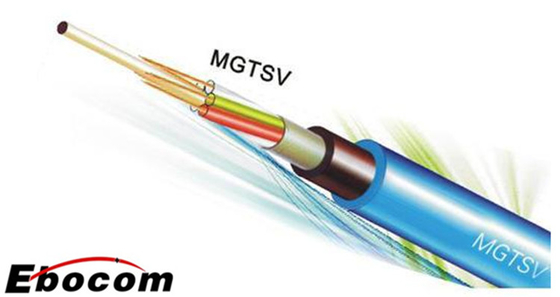

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally
applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Application
Specially used in coal industry
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensures a critical protection of fiber
• Special tube filling compound ensures a critical protection of fiber
• Excellent in environmental protection and flame resistant
• Good property of rodent resistant
• Steel wire used as the central strength member
3. Structure parameters
| Item | value |
| Model Number | MGTSV |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Jinan,China |
| Brand Name | EBOCOM |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |

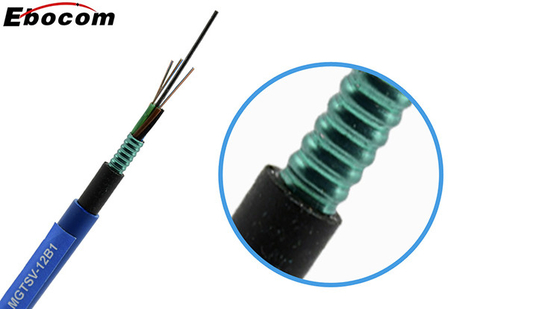

| Armoured | Steel tape |
| Outer Sheath | LSZH LSOH PE MDPE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black Blue |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70℃ |
| Certification | ISO9001 |
