Mining Fiber Optic Cable MGTSV 60 72 96 core Double Jackets Flame-Retardant for networking
networking Mining Fiber Optic Cable
,96 core Mining Fiber Optic Cable
,Networking Mining Fiber Optic Cable
Product description

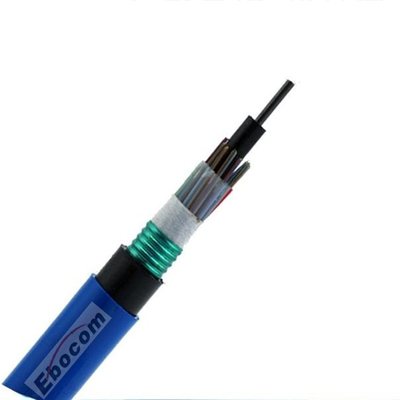

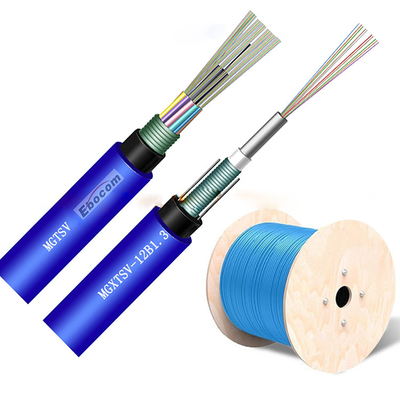

The flame-retardant optical cable for mining has a flame-retardant sheath, which can have a full cross-section water blocking structure, ensuring good water blocking and moisture-proof performance. The loose sleeve is filled with special ointment to provide critical protection for the optical fiber. Two parallel round steel wires are resistant to both tension and lateral pressure. The optical cable has a small outer diameter, light weight, and excellent bending performance. The loose sleeve is located at the physical center of the optical cable, making construction operation
convenient. It has low loss, low dispersion, compact structure, and good comprehensive mechanical performance.
Application
Specially used in coal industry
• Certified for use by national authorities
• Intended for mines, mine shafts and cable trays used for mining applications
2.Features
-Has excellent mechanical properties and temperature characteristics
-The tube is filled with special ointment to provide critical protection for the optical fiber
-Specially designed compact fiber optic cable structure effectively prevents sleeve retraction
-Good compression resistance and softness
3. Structure parameters
| Item | value |
| Model Number | MGTSV |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Jinan,China |
| Brand Name | EBOCOM |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | LSZH LSOH PE MDPE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black Blue |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70℃ |
| Certification | ISO9001 |
