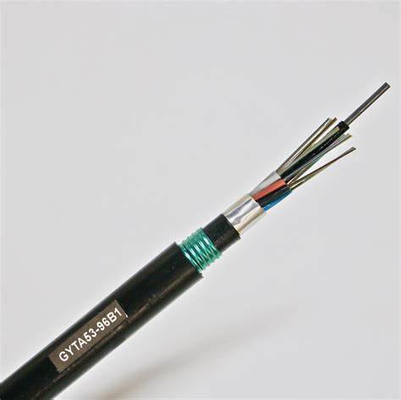

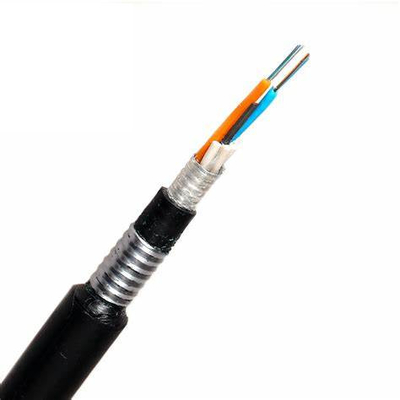

High-Performance GYTA53 Double-Armored Double-Jacket Fiber Optic Cable for Harsh Environments

  • High-Performance GYTA53 Double-Armored Double-Jacket Fiber Optic Cable for Harsh Environments
  • High-Performance GYTA53 Double-Armored Double-Jacket Fiber Optic Cable for Harsh Environments
  • High-Performance GYTA53 Double-Armored Double-Jacket Fiber Optic Cable for Harsh Environments
Place of Origin China
Brand Name Ebocom
Certification ISO
Model Number GYTA53
Minimum Order Quantity 2000M
Price 0.12 USD per Meter
Packaging Details Plywood Drum or Custimized
Delivery Time 3-10 days
Payment Terms L/C, T/T
Supply Ability 50 KM per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Communication Fiber Type Single Mode Or Multi Mode
Type Outdoor Optical Cable Aerial Fiber Count 2-288 Core
Jacket PE,MDPE,LSZH,PVC Length 1 Km 2km 3km Per Drum
Oem Available Structure Loose Tube
Highlight

Harsh Environments Fiber Optic Cable
Leave a Message
Product Description

Product Description

The GYTA53 Double-Armored Fiber Optic Cable is designed for direct burial and harsh outdoor environments, offering superior mechanical strength, water resistance, and rodent protection. With its central loose tube filled with moisture-resistant gel, this cable effectively protects single-mode or multi-mode fibers from environmental stress. The double armor structure—corrugated steel tape and an aluminum tape layer—ensures excellent crush resistance and enhances durability. Its UV-resistant and waterproof polyethylene (PE) outer sheath makes it perfect for underground fiber networks, long-distance communication, and industrial applications.

Features

  • Superior Protection: Double armor with corrugated steel tape (CST) and aluminum tape (ALT) prevents physical damage and rodent bites.

  • Enhanced Water Resistance: The double water-blocking system (water-blocking tape + gel-filled loose tube) ensures reliable performance in wet conditions.

  • High Tensile Strength: Designed for direct burial and aerial installation, providing excellent tensile and crush resistance.

  • UV & Weather Resistance: The thick PE outer sheath protects against extreme weather, including prolonged UV exposure.

  • Multi-Application Compatibility: Suitable for telecom backbone networks, railway communications, power grid networking, and military applications.

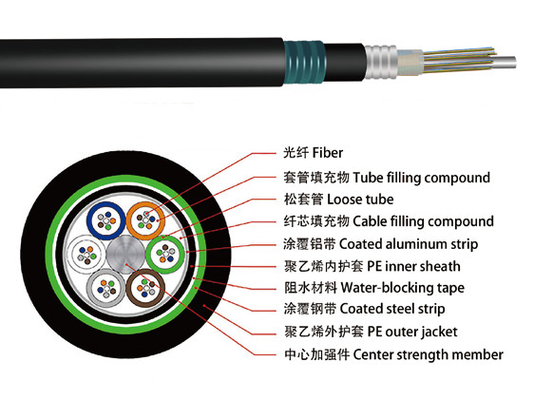

Technical Specifications

Item Specification
Fiber Type Single-Mode (G652D, G657A1, G657A2) / Multi-Mode (OM1, OM2, OM3, OM4)
Fiber Count 2-288 Cores
Loose Tube Central Tube, Water-Blocking Gel-Filled
Armoring Corrugated Steel Tape (CST) + Aluminum Tape (ALT)
Strength Member High Tensile Strength Steel Wires
Inner Jacket PE (Polyethylene)
Outer Jacket HDPE (High-Density Polyethylene), UV-Resistant
Operating Temperature -40°C to +70°C
Installation Method Direct Buried / Aerial / Pipeline
Standards Compliance IEC 60794, ISO 9001, RoHS, REACH, ITU-T G.652

Applications

  • Backbone Communication Networks: Ideal for long-distance telecom and internet infrastructure.

  • Underground Fiber Installations: Direct burial for stable underground connections.

  • Industrial & Power Grid Networking: Used in energy, oil & gas, and mining industries.

  • Smart City & Security Systems: Supports CCTV surveillance, IoT, and smart city projects.

This high-quality GYTA53 fiber optic cable is built for maximum durability, performance, and efficiency in demanding environments. Contact us for bulk orders, OEM solutions, and customized fiber optic cable requirements.
