Indoor Flexible GJFJH Fiber Optic Cable LSZH Jacket Tight Buffer Fiber Cable for High-Performance Data Transmission
LSZH Indoor Fiber Optic Cable
Product Description

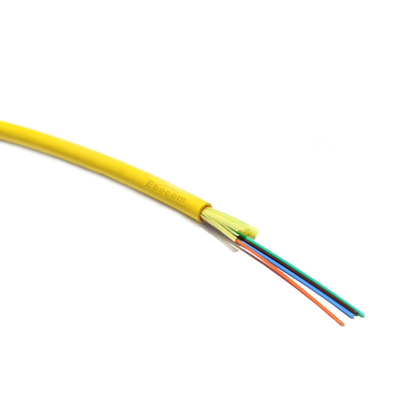

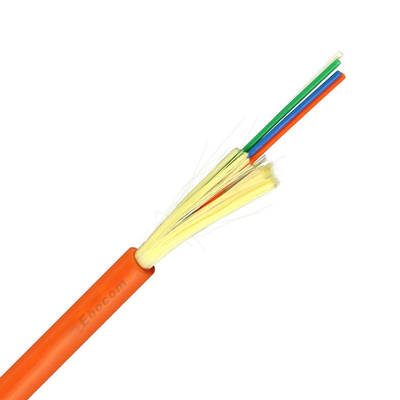

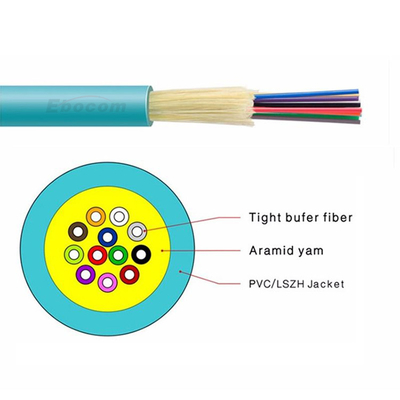

The GJFJH Indoor Fiber Optic Cable is a high-quality, low-smoke, halogen-free (LSZH) fiber optic cable designed for indoor applications. This cable consists of tight-buffered optical fibers (Single Mode G652D/G657A1/G657A2 or Multimode OM1/OM2/OM3/OM4), reinforced with aramid yarn (Kevlar) or polyester yarn for strength, and an LSZH outer sheath for fire safety. With fiber core options from 2 to 48, it is ideal for structured cabling, data centers, FTTx, and other high-speed communication networks.
Key Features
1. LSZH Outer Sheath – Flame-retardant, halogen-free material ensures safety in indoor environments.
2. Tight Buffered Design – Provides excellent mechanical performance and easy termination.
3. High Tensile Strength – Reinforced with aramid yarn or polyester yarn for durability.
4. Multiple Fiber Core Options – Available in 2 to 48 fibers to meet different network demands.
5. Single Mode & Multimode Options – Supports various transmission needs, from long-distance to high-bandwidth short-range applications.
6. Flexible & Lightweight – Ideal for use in offices, buildings, and indoor structured cabling systems.
Applications
** FTTH (Fiber to the Home) and FTTx Installations
** Data Centers & Enterprise Networks
** LAN & WAN Cabling
** Security & Surveillance Systems
** Indoor Backbone Cabling
** Broadcast & AV Fiber Solutions
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | GJFJH Indoor Fiber Optic Cable |
| Fiber Type | Single Mode (G652D/G657A1/G657A2) / Multimode (OM1/OM2/OM3/OM4) |
| Fiber Count | 2-48 cores |
| Buffer Type | Tight Buffered |
| Strength Member | Aramid Yarn / Polyester Yarn |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) |
| Cable Diameter | Varies by fiber count |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Tensile Strength | High tensile resistance for durability |
| Fire Performance | Flame-retardant, halogen-free, low smoke |
| Installation Type | Indoor structured cabling, backbone networks |
This GJFJH indoor fiber optic cable is manufactured to international standards and meets ISO certifications, ensuring reliability for high-speed optical communication networks. Contact us today to learn more about our custom fiber optic solutions!
