High Strength GYXTW Fiber Optic Cable 2-24 Cores Single Mode Steel Tape Armored for Aerial Duct Telecommunication

  • High Strength GYXTW Fiber Optic Cable 2-24 Cores Single Mode Steel Tape Armored for Aerial Duct Telecommunication
  • High Strength GYXTW Fiber Optic Cable 2-24 Cores Single Mode Steel Tape Armored for Aerial Duct Telecommunication
  • High Strength GYXTW Fiber Optic Cable 2-24 Cores Single Mode Steel Tape Armored for Aerial Duct Telecommunication
Place of Origin China
Brand Name Ebocom
Certification ISO
Model Number GYXTW
Minimum Order Quantity 2000M
Price 0.02 USD per Meter
Packaging Details Plywood Drum or Custimized
Delivery Time 3-10 days
Payment Terms L/C, T/T
Supply Ability 50 KM per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Telecommunication,FTTH FTTB FTTX Network,Aerial/Duct Fiber Type G652D
Fiber Count 2-24 Cores Jacket Material PE
Packing 2-4km/wooden Drum Strength Member Steel Wire/ Steel Tape
Oem Accpet
Highlight

Single Mode GYXTW Fiber Optic Cable

,

Aerial Duct GYXTW Fiber Optic Cable
Leave a Message
Product Description

Product Description

The GYXTW outdoor fiber optic cable is engineered for high-performance and long-distance data transmission in challenging environments. It adopts a central loose tube filled with water-blocking jelly to protect optical fibers from moisture and ensure signal stability.

Reinforced with two parallel steel wires for mechanical strength and an additional steel tape armor layer, this cable offers excellent protection against impact, compression, and rodent damage. The polyethylene (PE) sheath provides durability against UV and environmental stress, making it ideal for aerial suspension and pipeline laying.

Why Choose GYXTW Cable?

  • Up to 24 core capacity for flexible network expansion

  • Double armoring: steel wire + steel tape for maximum protection

  • Moisture-resistant gel-filled loose tube ensures optical performance

  • Rugged PE sheath resists UV, rain, and temperature variations

  • Optimized for aerial and duct installations in outdoor networks

  • Compatible with international telecom standards

Ideal Applications

  • Outdoor broadband infrastructure

  • Metro and regional transmission networks

  • Campus and industrial LAN setups

  • FTTH trunk cable for long-distance routing

  • Overhead cable installations and conduit runs

Technical Data Sheet

Parameter Details
Fiber Type Single Mode (G.652D / G.657A1)
Fiber Count 2 / 4 / 6 / 8 / 12 / 24 cores

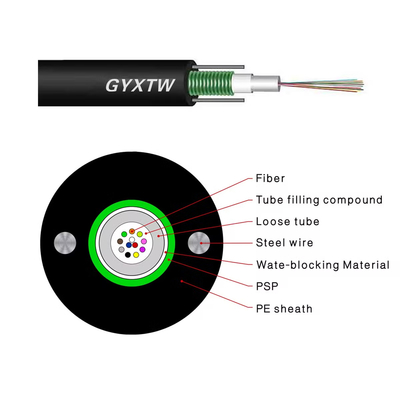

Cable Structure Central loose tube with jelly filling
Strength Members Two parallel high-strength steel wires
Armoring Corrugated steel tape
Outer Sheath Material Weather-resistant black PE
Nominal Cable Diameter 7.0 – 10.5mm (varies with fiber count)
Max. Tensile Strength Long-term: ≥ 1000N / Short-term: ≥ 1500N
Max. Crush Resistance Long-term: ≥ 500N/100mm / Short-term: ≥ 1000N
Operating Temperature Range -40°C to +70°C
Installation Environment Outdoor / Aerial / Duct
Standards IEC 60794 / ISO9001 / ITU-T G.652 / G.657

We provide full OEM & ODM service, including fiber color coding, custom printing, length marking, and packaging. Whether you're a distributor, contractor, or telecom operator, our GYXTW cables are designed to meet your outdoor connectivity needs with reliable performance and competitive pricing.
