Outdoor GYXTW 12 Core Fiber Optic Cable with Light Armored Design and PE Jacket
PE Jacket Outdoor Fiber Optic Cable
,12 Core Outdoor Fiber Optic Cable
,Light Armored Outdoor Fiber Optic Cable
Product Introduction

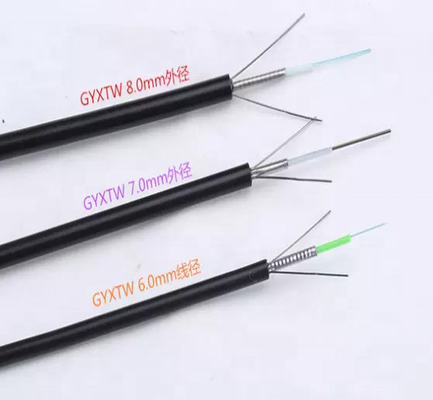

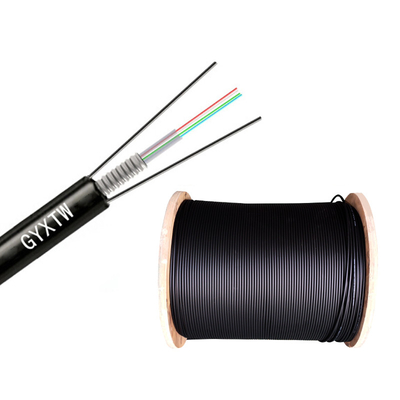

The GYXTW outdoor fiber optic cable is engineered for stable and high-speed transmission in harsh environments. It features a central loose tube structure filled with water-blocking gel and is protected by dual parallel steel wires and a corrugated steel tape layer. This design enhances its performance under mechanical stress and ensures long-term durability.
Ideal for backbone installations, this cable supports single-mode optical fibers (G.652D/G.657A) and is widely used in telecom networks, data centers, and FTTx applications.
Product Advantages
Stable Optical Performance – Centralized structure minimizes bending loss and ensures consistent signal transmission.
Enhanced Mechanical Strength – Steel wire and corrugated steel tape armor provides strong tensile and compression resistance.
Environmental Protection – PE outer sheath offers excellent resistance against UV, moisture, and temperature fluctuations.
Easy Installation – Lightweight and flexible for quick deployment in aerial or pipeline scenarios.
Wide Compatibility – Supports a wide range of network topologies and is compatible with all mainstream fiber optic systems.
Technical Specifications
| Item | GYXTW Optical Fiber Cable |
|---|---|
| Fiber Type | Single Mode (G652D, G657A1, G657A2 optional) |
| Core Count | 2~24 Cores |
| Cable Structure | Central loose tube with jelly |
| Strength Member | Two parallel steel wires |
| Armor | Corrugated steel tape |
| Outer Jacket | Black PE, UV resistant |
| Outer Diameter | 7.0mm ~ 10.5mm (depending on core count) |
| Working Temperature | -40°C to +70°C |
| Installation Method | Aerial / Duct |
| Tensile Strength | 1000N (Long Term) / 1500N (Short Term) |
| Crush Resistance | 500N/100mm (Long Term) / 1000N/100mm (Short Term) |
| Compliance Standards | IEC 60794, RoHS, ITU-T G.652/G.657 |
Applications
*Telecommunication Backbone Systems
*Campus and Building Connectivity
*Urban Infrastructure Networks
*FTTH Last Mile Deployments
*Engineering Projects and Government Networks
Customization & Support
We offer:
-
OEM / ODM branding
-
Custom print legends
-
Packaging options (wooden drums, coils)
-
Fast delivery & technical support
