Steel Wire Strength Member GYXTW Fiber Optic Cable Unitube Steel Tape Light-armored Cable for Stable Data Transfer
Light-armored Fiber Optic Cable
,Stable Data Transfer Fiber Optic Cable
,GYXTW Fiber Optic Cable
Product Overview

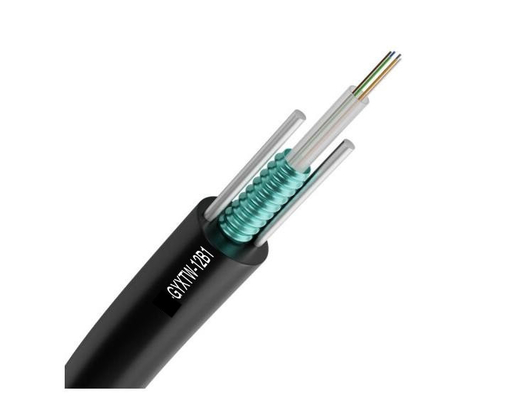

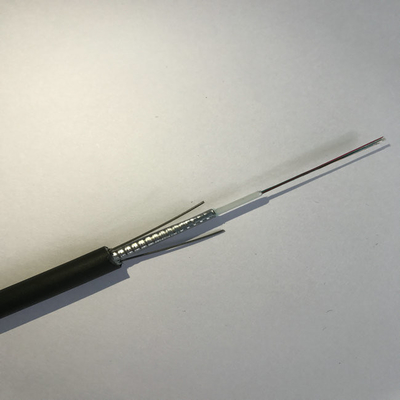

The GYXTW 6 Core Fiber Optic Cable is designed for outdoor use with a compact and durable central loose tube structure. This single-mode cable features two steel wire strength members and corrugated steel tape armor for enhanced mechanical protection. With excellent waterproof and rodent-resistant properties, it is ideal for aerial and duct installations in various harsh environments.
Whether you're building telecom backbones, FTTH distribution, or long-distance communication networks, this cable offers reliable performance and fast transmission.
Key Features
-

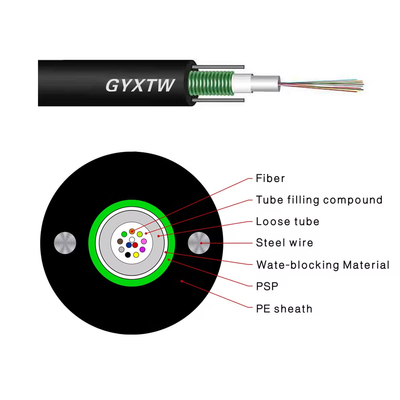

6 Core Central Loose Tube Structure
-
Armored with Corrugated Steel Tape for Extra Protection
-
Two Steel Wire Strength Members for Stability
-
UV-Resistant PE Outer Sheath
-
Excellent Mechanical and Environmental Performance
-
Suitable for Aerial and Conduit Installations
-
Low Attenuation & High Transmission Reliability
-
Compliant with IEC Standards
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Count | 6 cores (Single Mode - G652D / G657A1) |
| Structure | Central loose tube, jelly-filled |
| Strength Member | Two parallel steel wires |
| Armoring | Corrugated steel tape |
| Outer Jacket | Black UV-resistant PE |
| Outer Diameter | Approx. 7.5 mm |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Aerial / Duct / Pipeline |
| Application Fields | FTTH / FTTx / Telecom Backbone / LAN |
