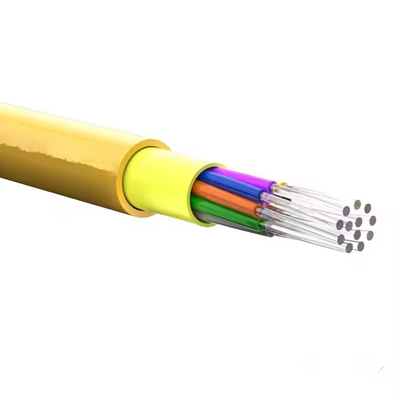

Indoor Colored Optical Fiber Cable gjfjv 2 4 12 24 Core SM MM G652D G657A1 OM3
G652D Indoor Colored Optical Fiber Cable
,24 Core Optical Fiber Cable
Product Introduction:

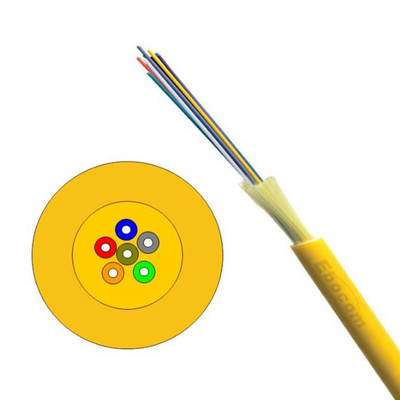

GJFJV type tight-buffered optical fiber bundle cable is made by evenly winding aramid yarn or high-strength glass yarn tight-buffered optical fibers as reinforcing members, and then covered with polyvinyl chloride sheath.
Features:
- Enhanced protection: The tight buffer provides excellent protection against physical damage, moisture, and environmental factors, ensuring the integrity and reliability of the optical fibers.
- Increased flexibility: The tight buffer layer makes the cable more flexible and allows for easier termination and handling during installation and maintenance processes.
- Small form factor: Due to the compact design, tight buffer cables have smaller overall diameters, making them easier to manage and install in limited space environments.
- Direct termination capabilities: The tight buffer design allows for direct termination of connectors onto the fiber, eliminating the need for additional protective elements like splice closures.
Applications:
.Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
