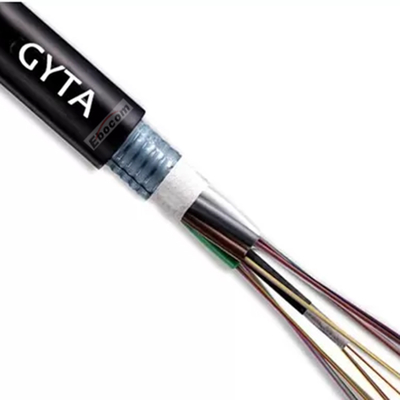

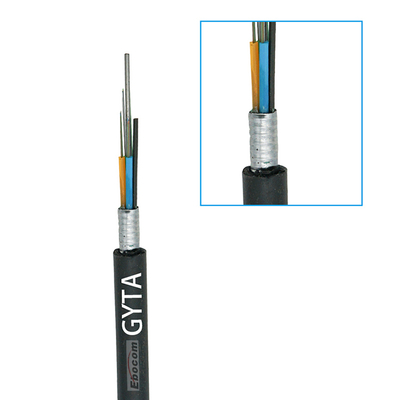

GYTA 24 Core G652D Loose Tube Steel Wire Armored Fiber Optic Cable Black PE Jacket Outdoor High Tensile Strength
GYTA 24 core armored fiber optic cable
,steel wire armored outdoor fiber cable
,high tensile strength loose tube cable
Product Title:
GYTA Steel Wire Armored Fiber Optic Cable – Outdoor, Single Mode / Multi Mode, 2~288 Cores
Product Description:
Overview
GYTA fiber optic cable features a steel wire armored layer providing excellent mechanical protection, ideal for outdoor and underground installations. The loose tube design with water-blocking gel protects the fibers from moisture and mechanical stresses, ensuring reliable long-distance data transmission.
Key Features
-
Steel Wire Armor: Provides superior crush resistance and rodent protection.
-
Water-Blocking Gel: Prevents moisture ingress for enhanced durability.
-
Wide Core Range: Supports 2 to 288 cores, accommodating diverse communication needs.
-
Durable Black PE Sheath: UV resistant and weatherproof for outdoor use.
-
High Tensile Strength: Suitable for direct burial, duct, and aerial installations.
Applications
-
Telecom backbone and long-haul networks
-
Underground and duct installations
-
FTTH and data center connectivity
-
Industrial and utility communication systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Type | Single Mode (G.652D / G.657A1/A2) or Multi Mode (OM1/OM2/OM3) |
| Core Count | 24 cores |
| Cable Structure | Loose tube, gel-filled, steel wire armored |
| Outer Sheath | Black PE, UV resistant |
| Operating Temperature | -40°C to +70°C |
| Standards | ISO |
Why Choose Us
-
15+ years of manufacturing expertise in fiber optic cables
-
Rigorous quality control with 100% pre-shipment testing
-
Customizable core count, fiber type, and sheath material
-
Fast delivery and reliable global shipping
Packing & Delivery
-
Export wooden drums or iron-wooden drums
-
Cable length: 1km–4km per reel (customizable)
-
Shipping via sea, air, or express courier
