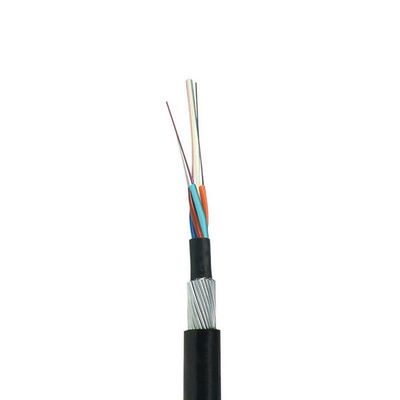

Outdoor Armored Fiber Optic Cable G652D GYTA 12 Core Loose Tube Aluminum Tape PE Jacket Ideal for Backbone Network Installation
Outdoor armored fiber optic cable G652D
,12 core loose tube fiber cable
,GYTA aluminum tape PE jacket cable
Product Description
The GYTA 12 Core Outdoor Armored Fiber Optic Cable is designed for high-capacity and long-distance communication networks.
It adopts a loose tube stranded structure with G652D single-mode fibers, filled with water-blocking gel to ensure moisture resistance.
The cable is armored with corrugated aluminum tape and covered with a durable black PE sheath, providing excellent mechanical protection and resistance against harsh outdoor environments.
Suitable for duct, direct buried, and aerial installations, it offers stable transmission performance over long distances.
Main Specifications
| Item | Specification |
|---|---|
| Fiber Type | G652D Single Mode |
| Fiber Count | 12 Cores |
| Structure | Loose Tube Stranded |
| Central Strength Member | Steel Wire |
| Armoring | Corrugated Aluminum Tape |
| Sheath | PE |
Features
-
High Mechanical Protection – Aluminum tape armor resists rodent damage and compression.
-
Excellent Moisture Resistance – Water-blocking materials prevent fiber attenuation from humidity.
-
Long-Term Stability – G652D fibers ensure low attenuation and stable signal transmission.
-
Versatile Installation – Suitable for direct buried, duct, and aerial installation.
Applications
-
Backbone network connections
-
Metropolitan area network (MAN) projects
-
Long-distance telecom and data transmission
-
Outdoor FTTx and access network deployments
