GYTA 4 Core Armored G652D Fiber Cable Loose Tube Design PE Outer Jacket Stable Transmission for Backbone and Access Networks
GYTA 4 core armored fiber cable
,G652D fiber optic cable with PE jacket
,loose tube outdoor fiber optic cable
Product Name

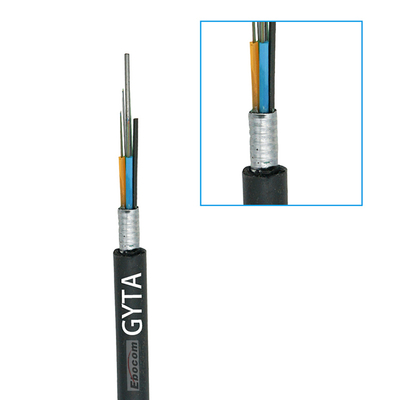

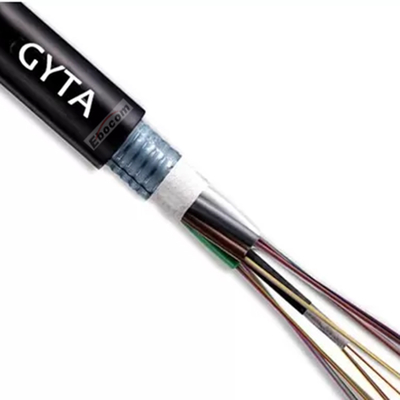

GYTA 4-Core Armored Outdoor Fiber Optic Cable – G652D Single Mode, Loose Tube Structure, PE Jacket
Product Description
The GYTA 4-Core Armored Outdoor Fiber Optic Cable is designed for high-performance backbone and access networks.
It features a loose tube design with G652D single-mode fibers filled with water-blocking gel for excellent moisture resistance.
The cable is armored with corrugated aluminum tape for mechanical protection and covered with a UV-resistant PE jacket, making it durable in harsh outdoor environments.
Ideal for duct, direct buried, and aerial installations, this cable guarantees low attenuation and stable long-distance transmission.
Main Specifications
| Item | Specification |
|---|---|
| Fiber Type | G652D Single Mode |
| Fiber Count | 4 Cores |
| Structure | Loose Tube Stranded |
| Central Strength Member | Steel Wire |
| Armoring | Corrugated Aluminum Tape |
| Sheath Material | PE |
-
Mechanical Protection – Aluminum tape armor resists crushing, rodents, and mechanical stress
-
Moisture Resistance – Water-blocking gel ensures fiber performance in wet environments
-
Reliable Transmission – G652D fibers provide low attenuation and high signal stability
-
Versatile Installation – Suitable for duct, direct buried, or aerial deployment
Applications
-
Outdoor backbone and access networks
-
FTTH and FTTx projects
-
Industrial and telecom networks
-
Duct and direct buried installation in harsh environments
Why Choose Our Cable
-
High-Quality Fibers – Compliant with ITU-T and IEC standards, 100% tested before shipment
-
Durable & Safe – Aluminum tape armor and PE jacket protect against environmental challenges
-
Customizable – Fiber count, cable length, jacket color, and packaging can be tailored to project needs
-
Global Shipping & Support – Reliable export experience and technical support for smooth project implementation
