G652D Single Mode GYTA 12-Core Outdoor Armored Fiber Optic Cable Loose Tube Stranded Aluminum Tape Armored PE Jacket Suitable for Long Distance Backbone Networks
12-core single mode fiber optic cable
,outdoor armored fiber optic cable
,long distance backbone network cable
Product Name

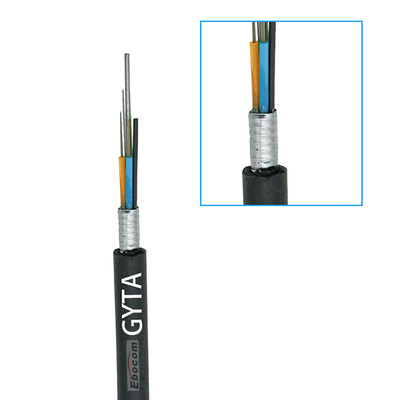

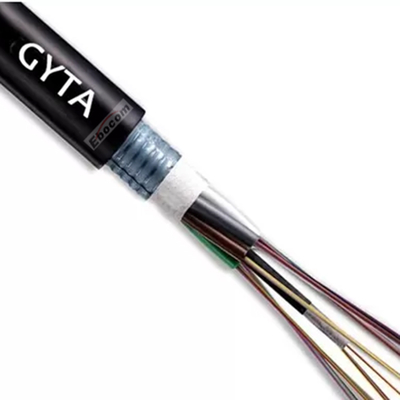

GYTA 12-Core Armored Outdoor Fiber Optic Cable – G652D Single Mode, Loose Tube Stranded, Aluminum Tape Armored, PE Jacket
Product Description
The GYTA 12-Core Outdoor Armored Fiber Optic Cable is designed for high-capacity and long-distance telecommunication networks.
It features a loose tube stranded structure with G652D single-mode fibers, filled with water-blocking gel to prevent moisture penetration.
The aluminum tape armor provides strong mechanical protection against crushing, rodents, and external stress, while the UV-resistant PE outer jacket ensures durability in harsh outdoor environments.
Ideal for duct, direct buried, and aerial installations, this cable delivers stable and low-attenuation transmission over long distances.
Key Features
-
High-Quality Fiber: G652D single mode fiber ensures low attenuation and reliable long-distance transmission.
-
Robust Armoring: Aluminum tape armor provides mechanical protection and rodent resistance.
-
Durable PE Jacket: UV-resistant, weatherproof, and suitable for outdoor deployment.
-
Water Blocking: Loose tube filled with gel prevents fiber damage from moisture.
-
Flexible Installation: Suitable for aerial, duct, or direct buried installations.
Main Specifications
| Parameter | Details |
|---|---|
| Fiber Type | Single Mode G652D |
| Fiber Count | 12 Cores |
| Structure | Loose Tube Stranded |
| Central Strength Member | Steel Wire |
| Armoring | Corrugated Aluminum Tape |
| Outer Jacket Material | PE |
Applications
-
Outdoor backbone and access networks
-
FTTH and FTTx projects
-
Industrial and telecom networks
-
Duct and direct buried installations in harsh environments
Why Choose Our Cable
-
Over 15 years of fiber optic cable manufacturing experience
-
Fully compliant with ITU-T G652D and IEC 60794 standards
-
OEM/ODM customization available for fiber count, cable length, and jacket color
-
Competitive pricing with fast delivery and global shipping
