GYTA 24 Core Outdoor Fiber Optic Cable G652D Single Mode Loose Tube Stranded Aluminum Tape Armored UV-Resistant PE Sheath Ideal for Duct and Direct Buried Installations
24 core outdoor fiber optic cable
,G652D single mode armored cable
,UV-resistant PE sheath fiber cable
Product Name

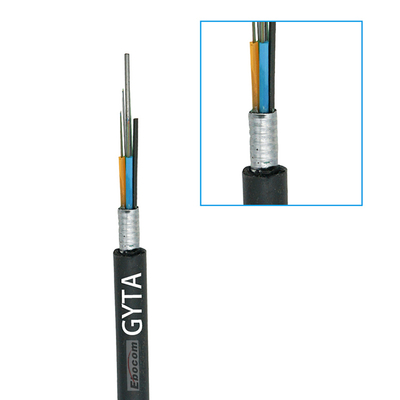

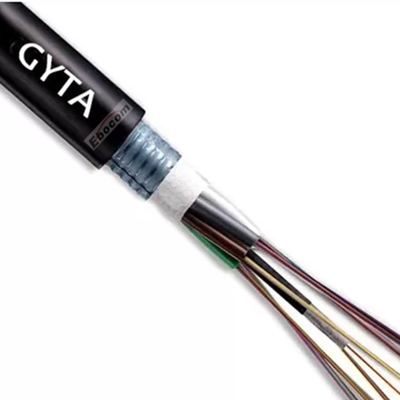

GYTA 24-Core Armored Outdoor Fiber Optic Cable – G652D Single Mode, Loose Tube Stranded, Aluminum Tape Armored, UV-Resistant PE Jacket
Product Description
The GYTA 24-Core Armored Outdoor Fiber Optic Cable is designed for high-capacity and long-distance telecommunication networks.
It features a loose tube stranded structure housing G652D single-mode fibers, filled with water-blocking gel to protect against moisture.
The cable is armored with corrugated aluminum tape, providing strong mechanical protection against crushing, rodent attacks, and external stress.
The UV-resistant black PE outer jacket ensures long-lasting durability in harsh outdoor environments.
Ideal for duct, direct buried, and aerial installations, this cable offers stable, low-attenuation signal transmission over long distances.
Key Features
-
High-Quality Fiber: G652D single mode fiber ensures low attenuation and reliable long-distance transmission.
-
Robust Armoring: Aluminum tape armor provides excellent mechanical protection and rodent resistance.
-
UV-Resistant PE Jacket: Weatherproof and durable for harsh outdoor environments.
-
Water Blocking: Loose tube filled with gel protects fibers from moisture.
-
Versatile Installation: Suitable for aerial, duct, or direct buried installations.
Main Specifications
| Parameter | Details |
|---|---|
| Fiber Type | Single Mode G652D |
| Fiber Count | 24 Cores |
| Structure | Loose Tube Stranded |
| Central Strength Member | Steel Wire |
| Armoring | Corrugated Aluminum Tape |
| Outer Jacket Material | PE |
Applications
-
Outdoor backbone and access networks
-
FTTH, FTTx, and FTTB projects
-
Industrial and telecom networks
-
Duct and direct buried installations in harsh environments
Why Choose Our Cable
-
Over 15 years of fiber optic manufacturing experience
-
Fully compliant with ITU-T G652D and IEC 60794 standards
-
OEM/ODM customization available for fiber count, cable length, and jacket color
-
Competitive pricing with fast delivery and global shipping
