GYXTW Fiber Optic Cable – 2-24 Core Loose Tube Steel Tape Armored PE Jacket Outdoor Long Distance
steel armored outdoor fiber optic cable
,24 core loose tube fiber cable
,long distance pe jacket fiber optic
Product Name
GYXTW Fiber Optic Cable – 2-24 Core Loose Tube Steel Tape Armored PE Jacket for Outdoor Long Distance
Product Description

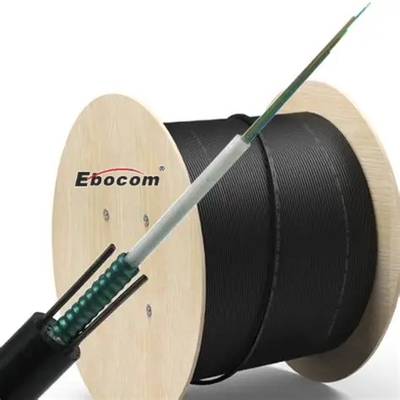

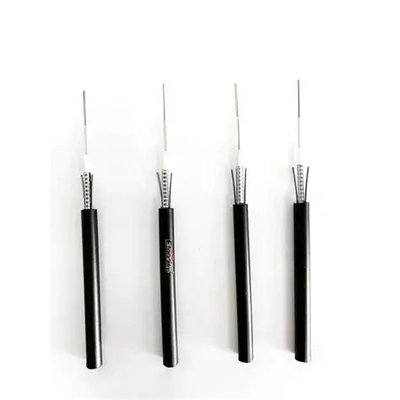

GYXTW fiber optic cable adopts a central loose tube structure, with fibers protected inside water-blocking gel. The cable is reinforced with double-sided steel tape armor and covered by a durable PE jacket, ensuring excellent mechanical strength, moisture resistance, and long-term reliability. It is specially designed for outdoor long-distance communication, suitable for duct installation and direct burial.
Technical Specifications
-
Cable Type: GYXTW
-
Fiber Count: 2~24 cores
-
Fiber Type: Singlemode G.652D / G.657A1 (optional)
-
Strength Member: Steel tape + FRP
-
Jacket Material: Black PE, UV resistant
-
Crush Resistance: 2000 N/100 mm
-
Tensile Strength: ≥ 1500 N (depending on core count)
-
Operating Temperature: -40℃ ~ +70℃
Applications
-
Long-distance outdoor communication networks
-
Duct and direct buried installations
-
Backbone and access networks
-
Railway, highway, and power line communication systems
Key Features
-
High tensile strength and crush resistance
-
Steel tape armor for excellent mechanical protection
-
PE outer sheath with UV resistance for outdoor durability
-
Stable transmission performance over long distances
-
Available in 2~24 fiber cores
