Durable GYTS 24 Core Steel Tape Armored Fiber Optic Cable Loose Tube PE Sheath for Outdoor Direct Burial and Long Distance Communication
GYTS 24 core armored fiber optic cable
,steel tape armored outdoor fiber cable
,direct burial loose tube fiber optic
Product Name
Durable GYTS 24 Core Steel Tape Armored Fiber Optic Cable Loose Tube PE Sheath for Outdoor Direct Burial and Long Distance Communication
Product Description

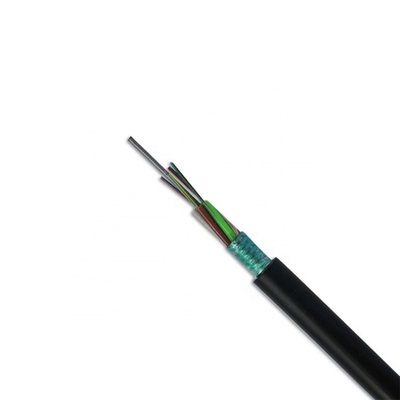

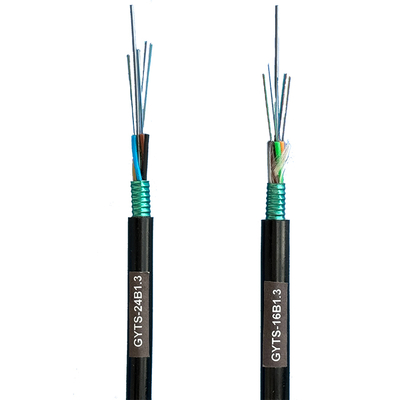

The GYTS 24 core armored fiber optic cable is designed for outdoor long-distance telecommunication networks. It features a loose tube structure filled with water-blocking gel to protect optical fibers against moisture and mechanical stress. The steel tape armored layer provides excellent crush resistance and rodent protection, while the black PE outer sheath ensures durability and resistance to UV radiation and harsh weather. With high tensile strength and stable transmission performance, it is an ideal choice for direct burial and duct installation projects.
Technical Specifications
-
Cable Type: GYTS (Steel Tape Armored Loose Tube)
-
Fiber Count: 24 cores
-
Fiber Type: Singlemode G652D or optional G657A1/A2
-
Strength Member: Metallic central strength member + steel tape
-
Outer Jacket: UV resistant PE sheath
-
Waterproofing: Water-blocking gel + steel tape barrier
-
Operating Temperature: -40℃ ~ +70℃
-
Installation: Direct burial, duct, and outdoor long-distance communication
Applications
-
Long-haul telecommunication networks
-
Direct burial fiber optic projects
-
Outdoor FTTx backbone and metropolitan area networks
-
Pipeline and duct installations
Key Features
-
Durable steel tape armored design for high crush and rodent resistance
-
Loose tube with water-blocking gel ensures stable performance in harsh conditions
-
PE sheath with UV resistance for long service life outdoors
-
High tensile strength suitable for long-distance communication projects
-
Reliable optical performance for backbone and FTTx networks
