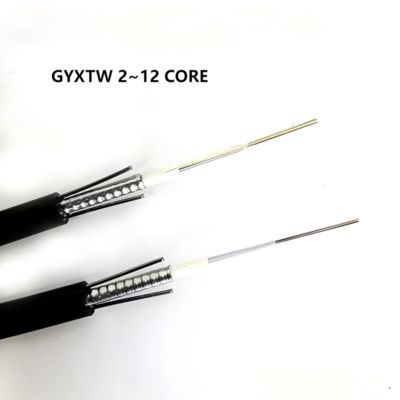

GYXTW 8 Core OM3 Multimode Central Loose Tube Outdoor Fiber Optic Cable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Aerial,Duct | Fiber Type | Multi Mode OM3 |
|---|---|---|---|
| Fiber Count | 8 Cores | Jacket | PE |
| Structure | Unitube | Strength Member | Two Steel Wire |
| Armoring | Steel Tape | ||
| Highlight | 8 core OM3 fiber optic cable,outdoor loose tube fiber cable,multimode central tube fiber optic |
||
You can tick the products you need and communicate with us in the message board.
| Loose Tube |
|---|
Product Description
Description
The GYXTW 8 Core OM3 Multimode Fiber Optic Cable is a central loose tube outdoor cable designed for high-speed data transmission and reliable network performance. It features OM3 multimode fibers (50/125μm) with excellent bandwidth for 10G and 40G transmission, making it ideal for campus networks, data centers, backbone cabling, and CCTV systems.

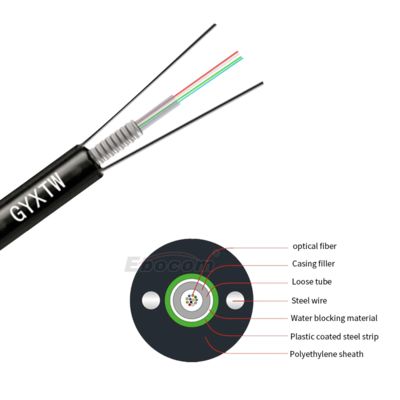

The cable adopts a central loose tube structure filled with waterproof jelly to ensure fiber protection. Two parallel phosphatized steel wires provide additional tensile strength, while the corrugated steel tape armor (STA) and black PE outer sheath offer superior mechanical protection and crush resistance for outdoor environments.
Key Features
-
High Transmission Performance: OM3 fibers ensure stable and high-speed transmission up to 10Gbps.
-
Strong Mechanical Protection: Double steel strength member and corrugated steel tape armor enhance crush and rodent resistance.
-
Excellent Water and Moisture Resistance: The loose tube is filled with water-blocking compound to prevent damage in damp conditions.
-
Durable and Weatherproof: Designed for long-term outdoor installation — suitable for aerial, duct, and direct burial applications.
-
Custom Options: Fiber type, core count, jacket material, and printing can be customized to meet project requirements.
Applications
-
Outdoor backbone network cabling
-
Data center and enterprise connections
-
Campus and building interconnection
-
CCTV and security monitoring systems
-
FTTH and FTTx deployment projects
Technical Parameters
| Item | Specification |
|---|---|
| Cable Type | GYXTW 8 Core OM3 Multimode Fiber Optic Cable |
| Fiber Type | OM3 (50/125μm) Multimode |
| Core Count | 8 Fibers |
| Structure | Central loose tube filled with waterproof compound |
| Strength Member | Two parallel phosphatized steel wires |
| Armor Layer | Corrugated steel tape |
| Outer Sheath | UV-resistant PE (Black) |
| Outer Diameter | Approx. 7.5 ± 0.3 mm |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Aerial, duct, or direct burial |
| Minimum Bending Radius | 20 × cable diameter (static) |
| Standard Length | 2000m / 4000m per drum (customizable) |
Why Choose Ebocom?
Ebocom is a professional fiber optic cable manufacturer with over 12 years of production experience.
We provide high-quality optical fiber cables, including GYXTW, GYTA53, ADSS, OPGW, FTTH drop cables, and more.
All products are ISO-certified, tested in our own Product Performance Testing Center, and fully customizable for OEM/ODM orders.
We guarantee competitive prices, fast delivery, and long-term reliability for your communication projects.
