24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn

  • 24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
  • 24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
  • 24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
  • 24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
  • 24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
Place of Origin China
Brand Name Ebocom
Certification ISO
Model Number ADSS-24B1.3
Minimum Order Quantity 1000M
Price USD 0.2-0.35 Meter
Packaging Details Customization
Delivery Time 5-10 days
Payment Terms L/C, T/T, Western Union
Supply Ability 40 KM Per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name ADSS Optical Fiber Cable Fiber Count 24 Cores
Application Telecommunication,outdoor Aerial,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise Outer Sheath PE/AT
Span 50 100 150 300 400 800M Jacket Color Black Or As Requested
Strength Member FRP,Kevlar Aramid Yarn Packing Wooden Drum
Highlight

SM G652D ADSS Fiber Optic Cable

,

Aramid Yarn ADSS Fiber Optic Cable

,

24 Core ADSS Fiber Optic Cable
Leave a Message
Product Description

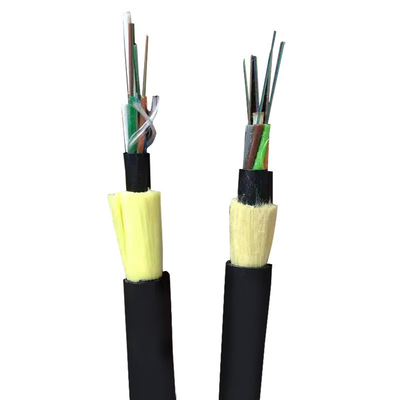

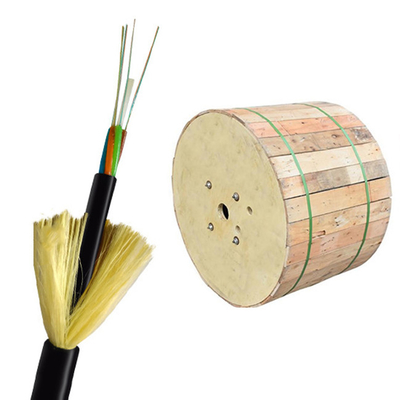

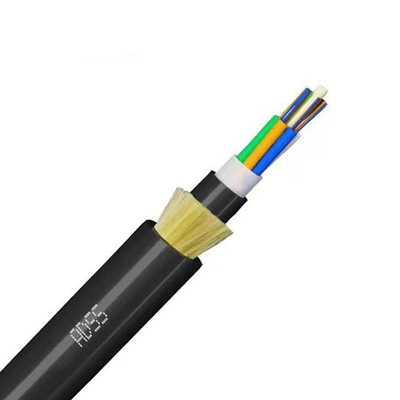

24 Core ADSS All-Dielectric Self-Supporting (ADSS) Fiber Optic Cable

Product Description

Introducing our High Quality ADSS Fiber Optic Cable, designed to deliver reliable and efficient communication across long distances. This 24 Core ADSS Cable utilizes Single Mode (SM) G652D fibers and is reinforced with Aramid Yarn for enhanced durability and performance. Our ADSS (All-Dielectric Self-Supporting) cables are ideal for both aerial installations and long-span applications without the need for metallic elements, making them perfect for high-voltage environments.

Key Features:

  • 24 Core SM G652D Fiber: Equipped with 24 cores of single-mode G652D fiber, providing superior transmission quality and reduced attenuation over long distances.
  • All-Dielectric Design: The ADSS cable is entirely dielectric, ensuring excellent insulation and safety, especially in high-voltage zones.
  • Aramid Yarn Reinforcement: The cable is reinforced with high-strength aramid yarn, offering superior tensile strength and resistance to environmental stress.
  • Lightweight and Durable: The ADSS cable is lightweight yet durable, making it easy to install and capable of withstanding harsh weather conditions.
  • Long Span Capability: Supports installation spans of up to several hundred meters, ideal for both urban and rural deployments.

24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 024 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 1

Applications:

  • Long-distance outdoor communication networks
  • Aerial installations along power lines and utility poles
  • High-voltage environments where metal cables are not suitable
  • Data transmission in remote and rural areas
  • Network infrastructure for telecommunications and broadband services

Technical Specifications:

Specification Details
Product Name ADSS Fiber Optic Cable
FiberType Single Mode (SM)G652D
Core Count 24 Core
Cable Design All-Dielectric Self-Supporting (ADSS)
Reinforcement Material Aramid Yarn
Outer Jacket Material High-density Polyethylene (HDPE)
Tensile Strength Up to 4000 N
Operating Temperature Range -40℃ to+70℃
Attenuation at 1310nm ≤0.36 dB/km
Attenuation at 1550nm ≤0.22 dB/km
Maximum Span Length Up to 1000 meters (depending on specific conditions)
Installation Method Aerial(pole to pole,tower to tower,etc.)
Cable Diameter Customized based on specific requirements
Sheath Color Black (customizable upon request)



24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 224 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 3

Advantages of Our ADSS Fiber Optic Cable:

High-Quality Transmission: With the use of G652D Single Mode fibers, the cable ensures minimal signal loss and excellent transmission performance over long distances.

Enhanced Durability: The use of Aramid Yarn provides the cable with outstanding mechanical properties, including high tensile strength and resistance to wind, ice, and temperature variations.

Easy Installation: Lightweight and easy to handle, our ADSS cable can be installed quickly and efficiently in various aerial settings without the need for support or conductive elements.

Cost-Effective: The cable's all-dielectric nature eliminates the need for grounding and bonding, reducing installation and maintenance costs.

Wide Application Range: Suitable for a variety of applications, from city networks to remote rural communications, ensuring flexibility in deployment.

24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 424 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn 5

Why Choose Us?

  • Professional Manufacturer: With years of experience in fiber optic cable production, we ensure top-notch quality and reliability.
  • Customization Options: We offer customizable options to suit specific project needs, including cable length, core count, and jacket material.
  • Global Shipping: We provide fast and reliable shipping to customers worldwide, ensuring timely delivery for your projects.
  •
