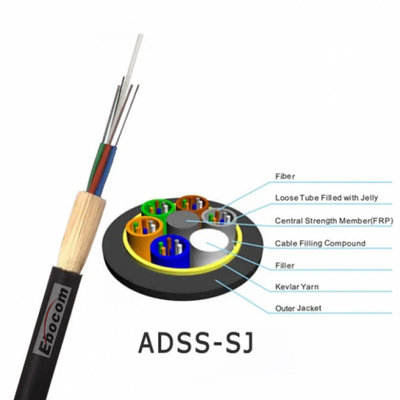

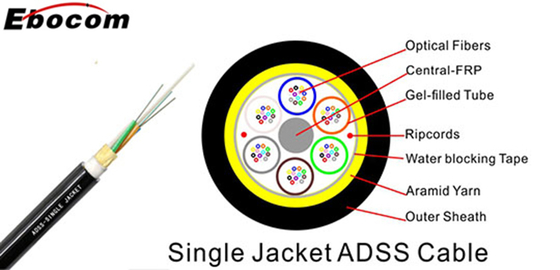

All Dielectric Self Supporting Fiber Optic Cable Single Jacket ADSS 12 24 48 Core For Communication
ADSS fiber optic cable 48 core
,dielectric self supporting fiber cable
,single jacket ADSS communication cable
Description
Features
All-Dielectric:
Composed entirely of non-metallic, insulating materials, which prevents electrical current from passing through the cable and makes it safe for use near high-voltage lines.
Self-Supporting:
The cable's internal structure provides sufficient mechanical strength to support its own weight and external loads, removing the need for a separate metallic support wire.
Water-Blocking:
Loose tubes within the cable are filled with a water-blocking gel to protect the optical fibers from moisture and ensure stable performance.
SZ Stranding:
The fiber optic tubes are reverse-oscillated (or SZ-stranded) within the cable, which provides slack for easier mid-span access and protects the fibers from installation stresses and environmental conditions.
High Strength:
ADSS cables incorporate reinforcing elements, such as Aramid yarn, to provide the high mechanical strength required for long spans and demanding aerial applications.
Track-Resistant Jacket:
For installation in electric fields, a specialized track-resistant polyethylene (TRPE) outer jacket is available to prevent erosion and dry-band arcing damage.
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |
* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer's request according to different span and sag environment.
| Minimum Bending Radius: | Maximum Compressive Load: | 4000N | |
| Under installation: | 20×OD | Repeated Impact: | 4.4 N.m (J) |
| During operation | 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD |
| 20×OD for armoured cables | Cyclic Flexing: | 100 cycles | |
| Temperature Range: | |||
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | Crush Resistance: | 263N/cm (1250lb/in) |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) |
