ADSS 24 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span

Product Description

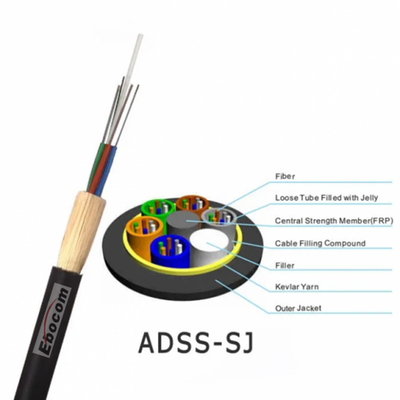

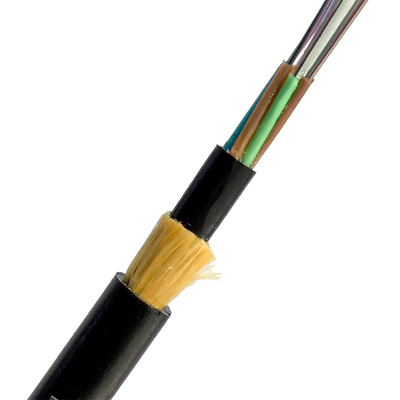

The Ebocom ADSS 24 Core Double Jacket Fiber Optic Cable is an all-dielectric self-supporting (ADSS) design specially developed for medium-span aerial installations up to 200 meters.
This cable uses 100% pure aramid yarn (no polyester blend) as the main strength member, providing superior tensile strength, excellent sag performance, and long-term stability under harsh outdoor conditions.
With a double PE jacket structure, it offers enhanced protection against UV radiation, moisture, and mechanical stress, making it ideal for power line communication and outdoor telecom networks.
The outer diameter can be customized based on span length, installation conditions, and fiber count requirements.

Ebocom ensures every ADSS cable meets strict testing standards — from raw material inspection to final product testing — to guarantee long service life and stable optical transmission.

Key Features

• 24 Core Fiber Design: Supports high-capacity transmission for backbone and access networks.

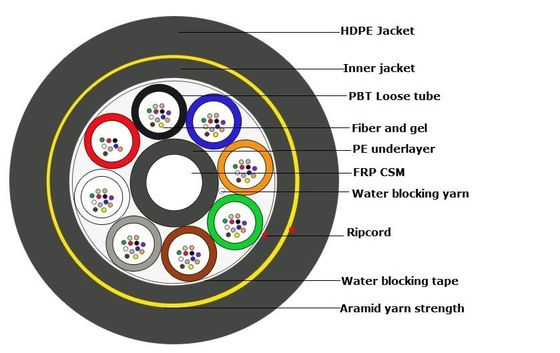

• Double Jacket Protection: Inner and outer PE sheaths provide excellent mechanical strength and UV resistance.

• 200m Span Capability: Stable and safe performance for medium-span aerial installations.

• 100% Aramid Yarn Strength Member: True aramid reinforcement (not mixed with polyester) for superior tensile performance.

• All-Dielectric Structure: No metal, no grounding required, safe for installation along power lines.

• Customizable Outer Diameter: Tailored to project needs for different span requirements.

• Weatherproof & Durable: Resistant to lightning, temperature changes, and environmental stress.

Applications

• Power transmission communication networks

• Aerial fiber installations along utility poles

• Medium-span outdoor telecommunication lines (up to 200m)

• Smart grid and industrial communication networks

• Rural broadband and FTTx projects

Technical Specifications
