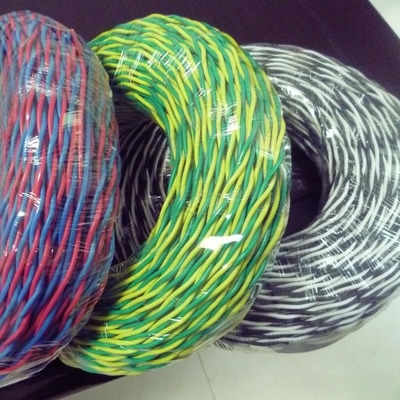

H03V-S H05V-S RVS Cable PVC Insulated Stranded Flexible Copper Cable 2*1.0 2*1.5 100m/roll
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | RVS Cable | Conductor Material | PVC |
|---|---|---|---|
| Insulation Material | PVC | Color | Black |
| Rated Current | 300/300V | Type | Low Voltage |
| Minimum Order Quantity | 200M | Brand Name | Ebocom /OEM |
| Payment Terms | L/C, T/T, | Certification | ISO9001,ISO45001,ISO14001 |
| Place Of Origin | Shandong ,China | ||
| Highlight | 100m/roll Stranded Flexible Copper Cable,2*1.5 Stranded Flexible Copper Cable,PVC Insulated RVS Cable |
||
Product Description
Product introduction:

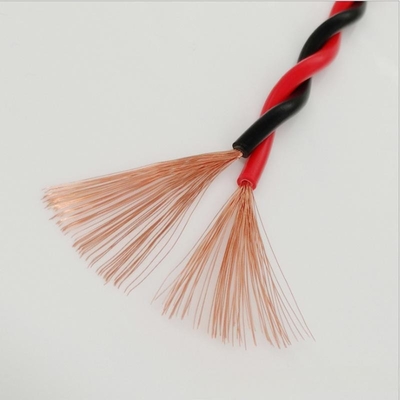

RVS cable full name cable copper wire PVC insulated stranded flexible wire for connection, twisted multi-stranded flexible wire, commonly known as twisted pair, alias "soft wire", r for copper wire, v for polybutadiene, s Represents twisted pair (insulation).
Characteristics of RVS Cable:
| Model No. | Conductor | Insualtion | Jacket | ||||
|---|---|---|---|---|---|---|---|
| Cores × Nom. Area | Max. Resistance at 20°C | Thickness | Min. Resistance at 70°C | Thickness | Min. Dia. | Max. | |
| mm² | MΩ/km | mm | MΩ/km | mm | mm | mm | |
| RVV2×0.75 | 2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
| RVV2×1.0 | 2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
| RVV2×1.5 | 2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
| RVV2×2.5 | 2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
| RVV3×0.75 | 3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
| RVV3×1.0 | 3×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
| RVV3×1.5 | 3×1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
| RVV3×2.5 | 3×2.5 | 7.98 | 0.8 | 0.009 | 1 | 9.6 | 12 |
| RVV4×0.75 | 4×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.8 | 8.6 |
| RVV4×1.0 | 4×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 7.6 | 9.4 |
| RVV4×1.5 | 4×1.5 | 13.3 | 0.7 | 0.01 | 1 | 9 | 11 |
| RVV4×2.5 | 4×2.5 | 7.98 | 0.8 | 0.009 | 1.1 | 10.5 | 13 |
| RVV5×0.75 | 5×0.75 | 26 | 0.6 | 0.011 | 0.9 | 7.4 | 9.6 |
| RVV5×1.0 | 5×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 8.3 | 10 |
| RVV5×1.5 | 5×1.5 | 13.3 | 0.7 | 0.01 | 1.1 | 10 | 12 |
| RVV5×2.5 | 5×2.5 | 7.98 | 0.8 | 0.009 | 1.2 | 11.5 | 14 |
Application:
1. Rvs cable is mostly used for the detector circuit of the fire alarm automatic alarm system.
2. Suitable for household appliances, small power tools, instrumentation and power lighting. Double white core is used for direct connection to the lamp line; red and blue core is used for fire protection, alarm, etc.; red and white core is used for broadcasting and telephone line; red and black core is used for broadcasting line.
3. Rvs cable is used to connect the amplifier and audio equipment, and the broadcast system transmits the audio signal amplified by the power amplifier.
