High tensile strong resistance Adss fiber optical cable12 24 48 core hilos fibra optica cable mini group soporte pptueb

  • High tensile strong resistance Adss fiber optical cable12 24 48 core hilos fibra optica cable mini group soporte pptueb
  • High tensile strong resistance Adss fiber optical cable12 24 48 core hilos fibra optica cable mini group soporte pptueb
  • High tensile strong resistance Adss fiber optical cable12 24 48 core hilos fibra optica cable mini group soporte pptueb
Brand Name EBOCOM
Certification ISO TLC
Model Number ADSS -108B1.3
Minimum Order Quantity 2000M
Price EXW ≥2000m $0.97/M ≥5000m $0.95/M

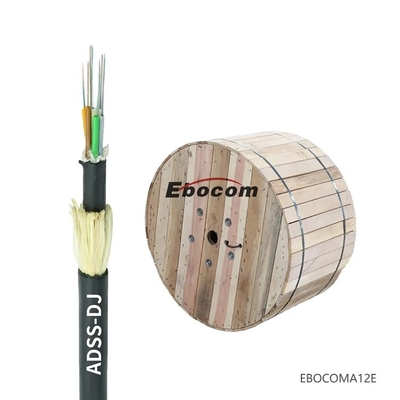

Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Payment Terms T/T
Supply Ability 50000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. ADSS Core ≥2
Brand OEM Sheath Material PE
Transport Package Wooden Reel Trademark OEM
Origin China
Leave a Message
Product Description

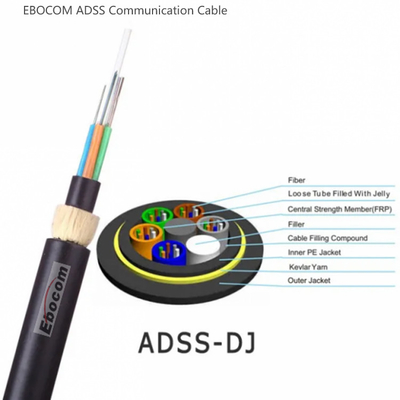

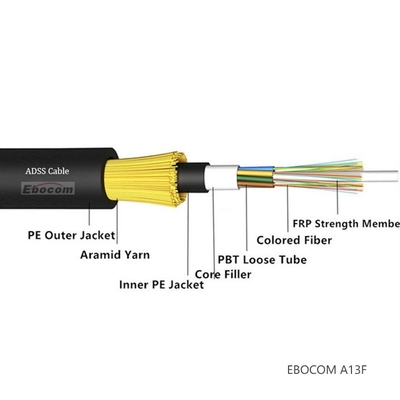

ADSS optical cable is a non-metallic optical cable that is composed entirely of dielectric materials, contains the necessary support system, and can be directly hung on power poles. It is mainly used for communication routes in overhead high-voltage transmission systems. It can also be used for communication lines in overhead laying environments such as lightning-prone areas and long-span environments.



Main applications:



ADSS optical cables are used in power companies, telecommunications companies and private network groups, distribution and high-voltage transmission lines, conductors, outdoor aerial self-operated installations, enterprise OSP networks, broadband, FTTX networks, railways, telecommunications, CATV, CCTV, computer network systems , Ethernet LAN network, off-site campus backbone network, etc.



Features:



1) ADSS optical cable is a fully insulated self-supporting overhead optical cable, which does not contain any metal materials in its structure;

2) The fully insulated structure and high voltage resistance index are conducive to the installation and construction of overhead power lines operating with electricity, without affecting the operation of the lines;

3) The use of high tensile strength anti fiber materials can withstand strong tension, meeting the requirements for large span of overhead power lines;

4) The thermal expansion coefficient of ADSS optical cable is small. When the temperature changes greatly, the curvature of the optical cable line changes very little, and its weight is light, and its ice resistance and wind load are also small.



Technical Parameter:



Designation Diameter (mm) RTS(N) MAT(N) EDS(N) Kg/km
2~24 core
ADSS-AT(PE)xx -4KN 12.2 9698 3879 2425 121
ADSS-AT(PE)xx -6KN 12.5 14108 5643 3527 126
ADSS-AT(PE)xx -9KN 12.9 22928 9171 5732 135
ADSS-AT(PE)xx -12KN 13.3 30645 12258 7661 143
ADSS-AT(PE)xx -15KN 13.6 37260 14904 9315 149
ADSS-AT(PE)xx -18KN 13.9 44978 17996 11245 157
ADSS-AT(PE)xx -21KN 14.3 52695 21078 13174 164
ADSS-AT(PE)xx -24KN 14.6 60413 24165 15103 172
ADSS-AT(PE)xx -26KN 14.8 65925 26370 16481 177
26~36 core
ADSS-AT(PE)xx -4KN 12.8 9698 3879 2425 133
ADSS-AT(PE)xx -6KN 13.0 14108 5643 3527 138
ADSS-AT(PE)xx -9KN 13.4 22928 9171 5732 146
ADSS-AT(PE)xx -12KN 13.8 30645 12258 7661 154
ADSS-AT(PE)xx -15KN 14.1 37260 14904 9315 161
ADSS-AT(PE)xx -18KN 14.4 44978 17991 11245 168
ADSS-AT(PE)xx -21KN 14.7 52695 21078 13174 175
ADSS-AT(PE)xx -24KN 15.1 60413 24165 15103 183
ADSS-AT(PE)xx -26KN 15.3 65925 26370 16481 188





Company Profile


Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection
equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment,
precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high
quality and quality of products. reliability. In order to further ensure product quality, the company has established a
strict management system and checks every step of the production process at all levels.
Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as
"High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise",
Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and
Credit-worthy Unit", etc. The products are sold to 32 provinces and cities in China, and exported to 23 countries and
regions including Africa, Southeast Asia, Russia, Europe, the Middle East, and South America.
With our eyes on the world and broad vision, Ebocom® will continue to be integrity-based business philosophy, and
contribute to the development of the motherland and the global optical fiber and cable industry with products,
reputation and services. We look forward to creating a brilliant future together!
