High quality ADSS Cable 12 24 48 72 96 Core Fiber Optic Price per km Chinese factory self support
Self Support ADSS Cable
,96 Core ADSS Cable
,High quality ADSS Cable
ADSS cables are insulated and suitable for overhead installations. In contrast to typical cables used in overhead installations, the strength and support design of ADSS cables is inherently circular in cross-section. It is self-supporting.

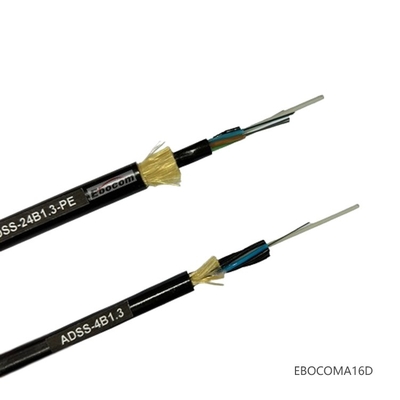

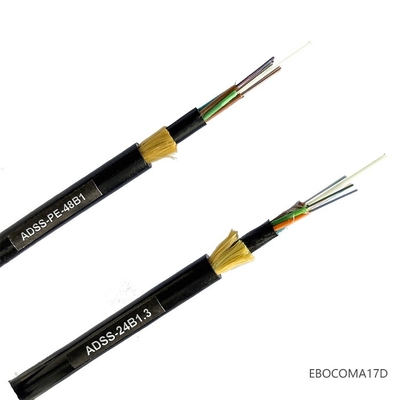

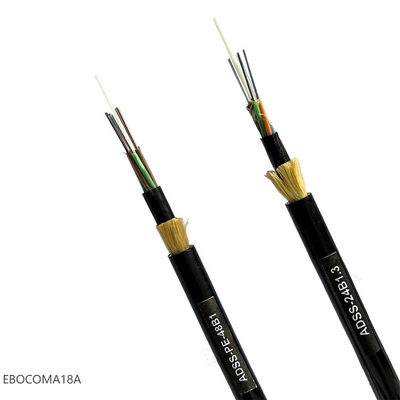

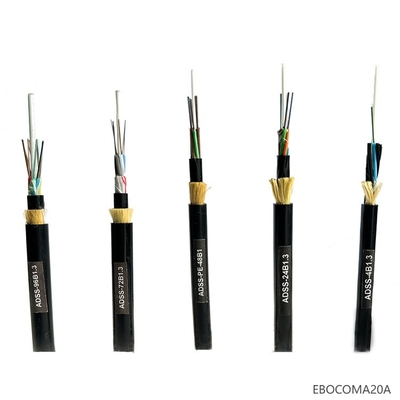

ADSS cables consist of non-metallic strength members (FRP and aramid yarns) and loose tubes with optical fibers and gel filling, all covered in a protective outer sheath of PE/AT material. Design and form vary according to specific needs, but the main components are generally the same.
Application:
ADSS fiber optic cable is a self-supporting fiber optic network cable that does not require any support when moving power from one location to another. These cables, although self-supporting, are usually installed on utility poles and power lines with the aid of fiber optic connectors.
Specifications:
1. Non-metallic reinforcing element.
2. PE or AT jacket
3. Span: 100-1000m
4. Areas of strong electric field, multi-thunder
Fiber Parameters:
| No. | Items | Unit | Specification | |
| G.657A | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm |
dB | ≤0.75 |
| 1turn×10mm radius@1625nm |
dB | ≤1.5 | ||
