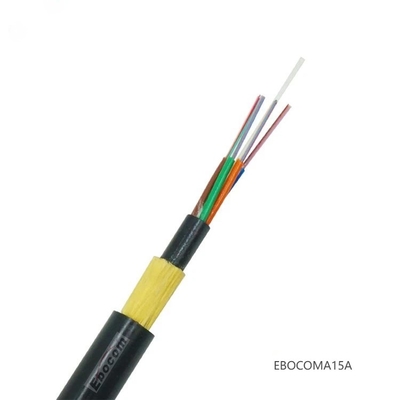

Outdoor Single/Double Jacket ADSS Fiber Optic Cable with Multi-strand Loose Tube Structure
Outdoor ADSS Fiber Optic Cable

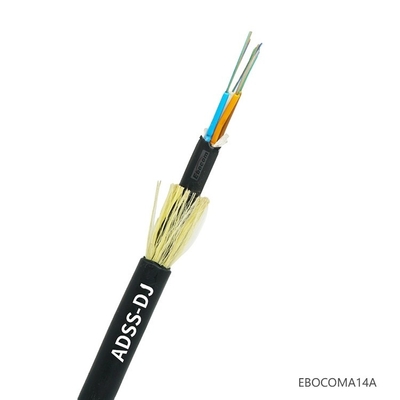

,Double Jacket ADSS Fiber Optic Cable
,Single Jacket ADSS Fiber Optic Cable
ADSS optical cable has the characteristics of full dielectric, metal-free, non-conductive, small wire diameter, high tensile strength, low linear expansion coefficient, and wide temperature range. The number of ADSS optical cable cores and the type of light can be customized according to customer needs. The number of cores of ADSS optical cable is 2, 6, 12, 24, 36, 48, etc., up to 288 cores.
Main features:
- Suitable for self-supporting installation of distribution lines and high-voltage transmission lines or telecommunication;
- High pressure resistant outer sheath;
- Lines with space potential up to 35kv;
- Loose tubes are twisted into a cable core, and gel is filled for buffering;
- Aramid yarn is used as a reinforcement to ensure the tensile strain performance of small spans (usually below 100 meters).

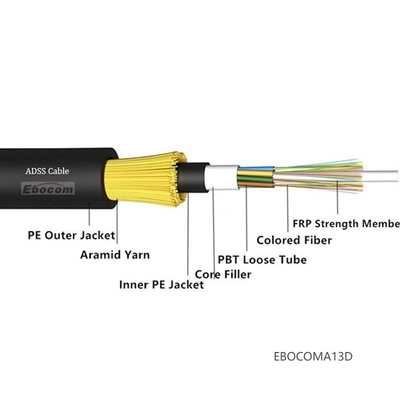

ADSS Cable Parameters:
| Description | Structural Parameters | No. | Dimension |
| Center Reinforcement | FRP | 1 | 2.7mm |
| Beam tube | Single bundle tube fiber core number | 12 Cores | 2.6mm |
| Number of beam tubes | 4 Nos | ||
| Inner sheath | PE Inner sheath | 1.0mm | |
| Enhancement layer | Aramid yarn | ||
| Outer sheath | Outer sheath | 1.7mm | |
| Material of Outer sheath | MDPE | ||
| Cable diameter | 13.6mm | ||
| Fiber Chromatography | Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, Light blue | ||
| Beam tube chromatography | Blue, orange, green, brown | ||
