Outdoor Aerial 48 core ADSS Fiber Optic Cable with Non Metallic FRP Strength Member
48 core ADSS Fiber Optic Cable

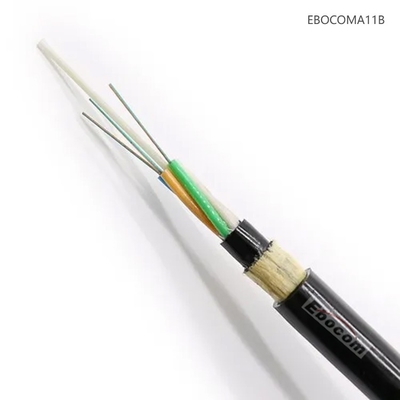

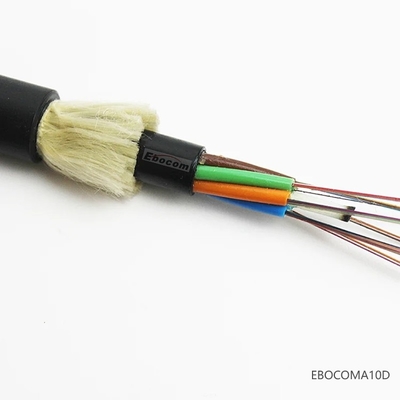

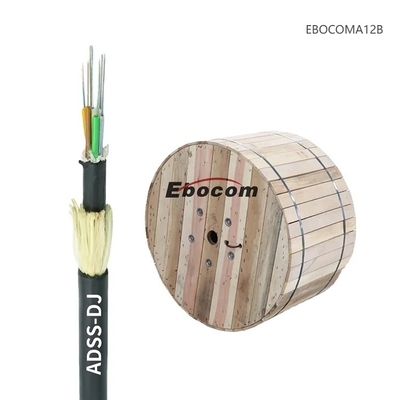

Double Jacket Stranded ADSS Cable – Fibers are placed in loose tubes, loose tubes and fillers will be stranded around a non-metallic central reinforcement (FRP) to form a compact circular cable core, and then extruded with a layer of PE (polyethylene) inner sheath. After the aramid yarn is applied on the inner sheath as reinforcement, the outer sheath of PE or AT is extruded.
Main Characters
- Loose tube design
Stable performance and compatibility with all common fiber types - Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. - Track-resistant & jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the
resistance to corrosion(AT) outer sheath. - Suitable for Aerial self-support installation
Optical Fiber Performance
| Fiber Type | G.652D,125.0+-1.0μm |
| Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
| Cladding Diameter | 125+-1μm |
| Cladding Non-Circularity | <=1% |
| Coating Diameter | 245+-10μm |
| Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
| Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
| Zero Disperse Wavelength | 1300-1322nm |
| PMD Coefficient | <=0.2ps/√km |
