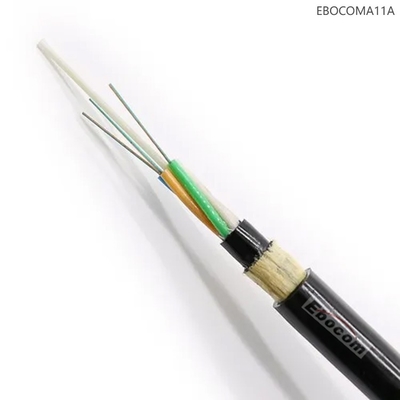

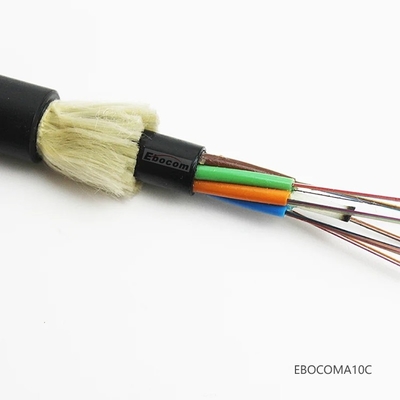

Single mode aerial overhead outdoor ADSS 8 12 core 3km fiber optic cable for sale
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO TLC |
| Model Number | ADSS -120B1.3 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.99/M ≥5000m $0.97/M |

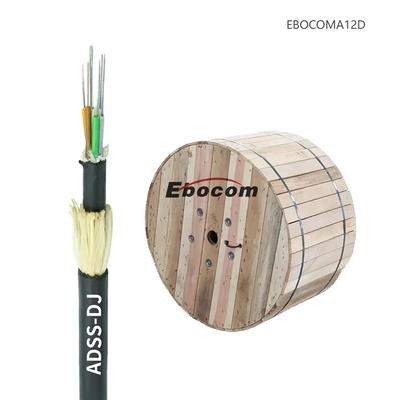

| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Payment Terms | T/T |
| Supply Ability | 50000KMS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MODEL | Ebo-ADSS | Cable Length | 3Km/Drum |
|---|---|---|---|
| Fiber | SM G652D | Insertion Loss | ≤0.30dB |
| Strengthen | Aramid Yarn | Return Loss | ≥50dB |
| Jacket Diameter | According To The Structure | Durability | ≤0.20dB |
| Jacket Material | PE | Test Wavelength | 1310/1550nm |
Product Description
Central loose tube optical fiber
Metallic central reinforcer
Fill gel into SZ stranded cores
Two-sided plastic-coating longitudinally-wrapped steel tape
Low-smoke zero halogen flame-retardant sheath
Application Range:
Suitable for long-distance communication and interoffice communication
Laying Method:Pipeline, aerial
Applicable Temperature:-40ºC~+60ºC
Product Features:
1.Low optical fiber transmission loss and low dispersion.
2.Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
3.Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
4.Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
5.Excellent flexibility and bending resistance performance.
6.Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
7.The cable sheath is made from halogen-free flame retardant polyethylene materials, with excellent flame retardant effect, no toxicity and pollution.
Technical Parameters
| Fiber cores | Outer diameter of optical cable mm |
Weight of optical cable kg/km |
Minimum bending radius mm |
Allowable minimum tensile strength N |
Allowable minimum crush resistance mN/100mm |
|||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2~36 | 11.8 | 190 | 120 | 240 | 1500 | 600 | 1000 | 300 |
| 38~72 | 13.4 | 225 | 140 | 280 | 1500 | 600 | 1000 | 300 |
| 74~96 | 14.9 | 266 | 160 | 320 | 1500 | 600 | 1000 | 300 |
| 98~120 | 16.6 | 350 | 170 | 340 | 1500 | 600 | 1000 | 300 |
| 122~144 | 18.2 | 400 | 190 | 380 | 1500 | 600 | 1000 | 300 |
