China factory price g652d 16 core double sheath adss fiber optic cable

  • China factory price g652d 16 core double sheath adss fiber optic cable
  • China factory price g652d 16 core double sheath adss fiber optic cable
  • China factory price g652d 16 core double sheath adss fiber optic cable
  • China factory price g652d 16 core double sheath adss fiber optic cable
Place of Origin Shandong，China
Brand Name EBOCOM
Certification ISO TLC
Model Number 96 core ADSS
Minimum Order Quantity 2000M
Price EXW ≥2000m $0.93/M ≥5000m $0.90/M
Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Payment Terms T/T
Supply Ability 50000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Conductors Customized Application Aerial Fiber Cable
Function Delivery Signal Light Sheath Material PE Or AT For Adss Fiber Optic Cable
Fiber Type G652/G655/G657 Length Per Roll 2km/3km/4km
Fiber Count 2core To 288 Core Strength Member FRP
Leave a Message
Product Description

ADSS cable is the short form for All-dielectric Self-supporting Optical Cable. The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

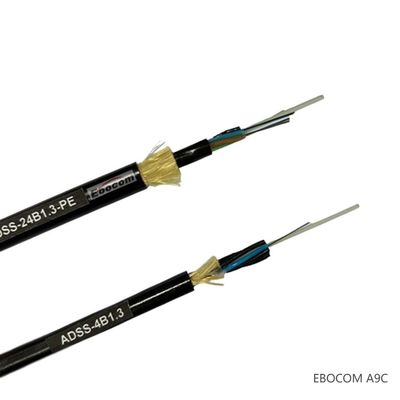

ADSS Cable Structure:
1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath

ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40~ +65℃

ADSS Cable Features:
(1) Lightweight and small diameter reduces the impact of ice and wind, and their impact on tower and supporter.
(2) Large span length: Max span>1000 meters, and the optical cable can be installed without electrical outage.
(3) Project design added (sag-tension, field intensity calculation, hanging point selection, hardware fittings configuration).

ADSS Cable Mechanical Properties:

Minimum Bending Radius Maximum Compressive Load 4000N for unarmored cables;
Under installation During operation 6000N for armoured cables
20×OD 10×OD for unarmoured cables Repeated Impact 4.4 N.m (J)
  20×OD for armoured cables Twist (Torsion) 180×10 times, 125×OD
Temperature Range Cyclic Flexing 25 cycles for armoured cables.
Operating Temperature Range Storage Temperature Range 100 cycles for unarmoured cables.
-40ºC(-40ºF) to +70ºC(+158ºF) -50ºC(-58ºF) to +70ºC(+158ºF) Crush Resistance 220N/cm (125lb/in)
