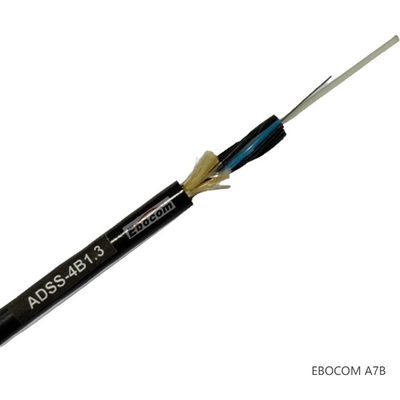

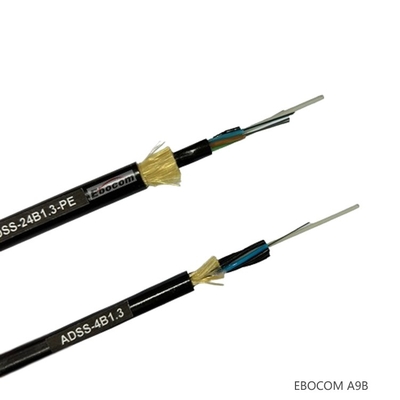

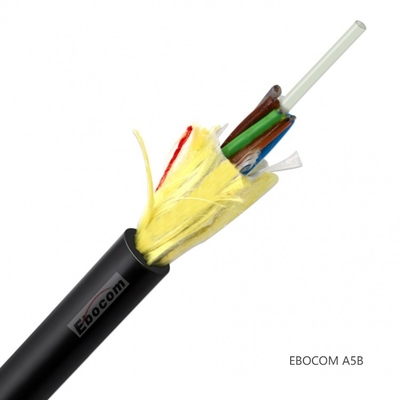

ADSS OEM Outdoor 36 Core Aerial Fiber Optic Cable With Double PE Outer Jacket

  • ADSS OEM Outdoor 36 Core Aerial Fiber Optic Cable With Double PE Outer Jacket
  • ADSS OEM Outdoor 36 Core Aerial Fiber Optic Cable With Double PE Outer Jacket
  • ADSS OEM Outdoor 36 Core Aerial Fiber Optic Cable With Double PE Outer Jacket
  • ADSS OEM Outdoor 36 Core Aerial Fiber Optic Cable With Double PE Outer Jacket
Place of Origin Shandong，China
Brand Name EBOCOM
Certification ISO TLC
Model Number ADSS -80B1.3
Minimum Order Quantity 2000M
Price EXW ≥2000m $0.81/M ≥5000m $0.79/M
Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time 5-8 day
Payment Terms T/T
Supply Ability 50000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. All Dielectric Cable Fiber Count 36 Core
Cable Type Sm Or Mm Fiber Type G652, G655
Outer Sheath PE Or AT Temperature -40 ~ +60℃
MOQ 2000m Transport Package Wooden Drum
Leave a Message
Product Description

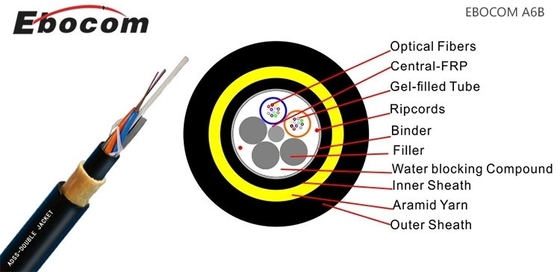

ADSS cable is short for All Dielectric Self Supporting optic fiber cables, which provide a fast and economical transmission channel in power communication systems due to their unique structure, good insulation and high temperature resistance, and high tensile strength. Generally, ADSS is cheaper than OPGW (optical fiber composite ground wire) in many applications, and it is easier to install. It is desirable, and in some places even necessary, to use ADSS fiber optic cable for power lines or their nearby towers.

Main application:
Used mainly in areas with high electrical field strength in power communication transmission system, or areas suffered from frequent lightning.

Features:
1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstanding
2. Mechanical and environmental performance.
3. Non-metallic construction makes the cable resist the electromagnetic interference well.
4. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for different weather conditions and different installation spans.
5. Special AT outer sheath (optional) offers good electro-erosion resisting performance

Technical Parameters:

Designation Diameter (mm) RTS(N) MAT(N) EDS(N) Kg/km

2~24 core
ADSS-AT(PE) -4KN 12.2 9698 3879 2425 121
ADSS-AT(PE) -6KN 12.5 14108 5643 3527 126
ADSS-AT(PE) -9KN 12.9 22928 9171 5732 135
ADSS-AT(PE) -12KN 13.3 30645 12258 7661 143
ADSS-AT(PE) -15KN 13.6 37260 14904 9315 149
ADSS-AT(PE) -18KN 13.9 44978 17996 11245 157
ADSS-AT(PE) -21KN 14.3 52695 21078 13174 164
ADSS-AT(PE) -24KN 14.6 60413 24165 15103 172
ADSS-AT(PE) -26KN 14.8 65925 26370 16481 177

26~36 core
ADSS-AT(PE) -4KN 12.8 9698 3879 2425 133
ADSS-AT(PE) -6KN 13.0 14108 5643 3527 138
ADSS-AT(PE) -9KN 13.4 22928 9171 5732 146
ADSS-AT(PE) -12KN 13.8 30645 12258 7661 154
ADSS-AT(PE) -15KN 14.1 37260 14904 9315 161
ADSS-AT(PE) -18KN 14.4 44978 17991 11245 168
ADSS-AT(PE) -21KN 14.7 52695 21078 13174 175
ADSS-AT(PE) -24KN 15.1 60413 24165 15103 183
ADSS-AT(PE) -26KN 15.3 65925 26370 16481 188
