Outdoor self-supporting ADSS 12 24 48 core aerial fiber optical cable
Aerial Fiber Optic Cable
,Aerial ADSS Fiber Optic Cable

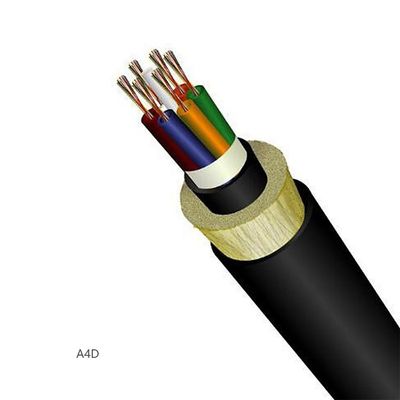

ADSS (All Dielectric Self-supporting Aerial Cable) is loose tube stranded. Fibres are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE outer sheath.
Application:
- Outdoor duct and aerial application;
- Long haul communication system;
- Subscriber and local area network;
- Voice,data,video and image system.
Environmental Conditions:
Storage/Operating Temperature : -40ºC to + 70ºC
Installation Temperature : -30ºC to + 60ºC
Packing and Lengths:
Packing: Wooden drums
Lengths (tolerance ±1%): 2-4km
Customized drum lengths available on request.
Mechanical Parameters:
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tension Strength (N) (Long/Short Term) | Crush Load (N/100mm) (Long/Short Term) | Bending Radius (Static/Dynamic) |
| 6 | 12 | 120 | 1500/3000 | 1000/2200 | 10D/20D |
| 12 | 12 | 122 | 1500/3000 | 1000/2200 | 10D/20D |
| 24 | 12 | 124 | 1500/3000 | 1000/2200 | 10D/20D |
| 36 | 12 | 126 | 1500/3000 | 1000/2200 | 10D/20D |
| 48 | 12 | 128 | 1500/3000 | 1000/2200 | 10D/20D |
| 60 | 13 | 140 | 1500/3000 | 1000/2200 | 10D/20D |
| 72 | 13 | 142 | 1500/3000 | 1000/2200 | 10D/20D |
| 96 | 14.4 | 175 | 1500/3000 | 1000/2200 | 10D/20D |
| 120 | 16.5 | 195 | 1500/3000 | 1000/2200 | 10D/20D |
| 144 | 16.5 | 225 | 1500/3000 | 1000/2200 | 10D/20D |
