high quality ADSS fiber Optica cable outdoor g652d 12 24 58 80 core hilos single mode span 200 single PE jacket
outdoor ADSS fiber Optica cable
All-dielectric self-supporting optical cable (ADSS) has the characteristics of metal-free, tension-resistant, self-supporting, high insulation, non-inductive, thin diameter, light, easy to construct and economical. It is a composite optical cable made by winding the optical fiber bundle around the central strengthening member and taking protective measures such as insulation, waterproofing, reinforcement, and sheathing.
Main Features:
- Full dielectric no metal
- Non-conductive;
- Small cable diameter
- Large pulling force ratio;
- Low linear expansion coefficient,
- Wide applicable temperature

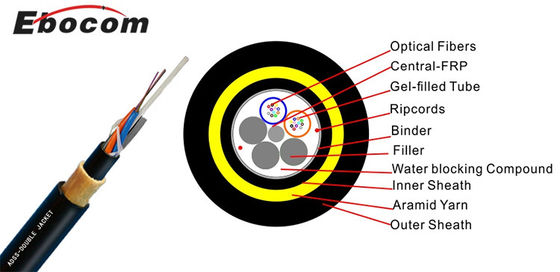

Structure & Technical Specifications:
| Fiber parameter(G.652D) | |||
| Item | Unit | G.652D | |
| MFD | μm | 8.6～9.5±7 | |
| Cladding Diameter | μm | 125±1 | |
| Cladding Non-circularity | % | S1 | |
| Diameter of coating layer | μm | 245±10 | |
| Attenuation Coefficient | @1310nm | dB/km | ≤0.36 |
| @1550nm | dB/km | ≤0.22 | |
| Dispersion | 1280~1330nm | ps/nm/km | ≤0.35 |
| 1550nm | ps/nm/km | ≤0.18 | |
| Zero dispersion wavelength | nm | 1300～1322 | |
| Partial positive mode dispersion coefficient | ps/ √km | ≤0.2 | |
