48 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE

Place of Origin China
Brand Name Ebocom/OEM
Certification TLC, ISO9001
Model Number ADSS-48B1.3
Minimum Order Quantity 1km
Price 366-505 USD/km
Packaging Details Customization
Delivery Time 5-10 work days (usually)
Payment Terms T/T
Supply Ability 40 km/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core No. 48 Or Customize Outer Jacket Material PE/AT
Strength Memeber FRP, Kevlar/Aramid Yarn Manufacturer Yes
Color Of Jacket Black Span 50 100 150 200 300 400 - 1000M
Loose Tube PBT Sheath Double Sheath
Length 2-3km/Drum Generally
Highlight

Double Jackets ADSS Fiber Optic Cable

,

Double Sheath ADSS Fiber Optic Cable

,

48 Core ADSS Fiber Optic Cable

Leave a Message
Product Description

48 Core ADSS Fiber Optic Cable Single Mode G652D

Product Description

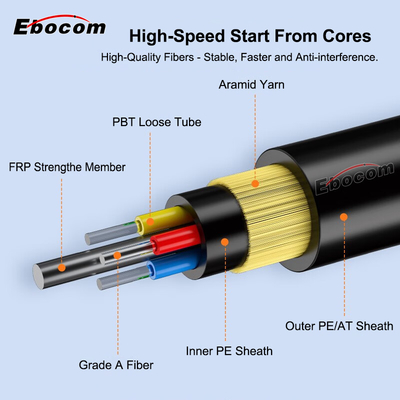

The ADSS Fiber Optic Cable, engineered for dependable and efficient long-distance communication, features 48 cores of premium Single Mode (SM) G652D fibers. Its construction includes Aramid Yarn and FRP reinforcement, ensuring superior tensile strength and durability. This All-Dielectric Self-Supporting (ADSS) cable is perfect for aerial installations and long spans, particularly in high-voltage environments, as it eliminates the need for metallic elements.

Key Features:

  • 48 Core SM G652D Fiber: Featuring 48 cores of single-mode G652D fiber, offering high-quality signal transmission with minimal attenuation over extended distances.
  • All-Dielectric Structure: The completely dielectric design provides excellent insulation, making it highly safe for use in high-voltage areas.
  • Reinforced with Aramid Yarn: Enhanced with high-strength aramid yarn, the cable offers excellent tensile resistance and withstands environmental stress.
  • Durable Yet Lightweight: Designed to be both lightweight and sturdy, the cable is easy to install and built to endure harsh weather conditions.
  • Long Span Capabilities: Suitable for spans of several hundred meters, making it ideal for both urban and rural applications.

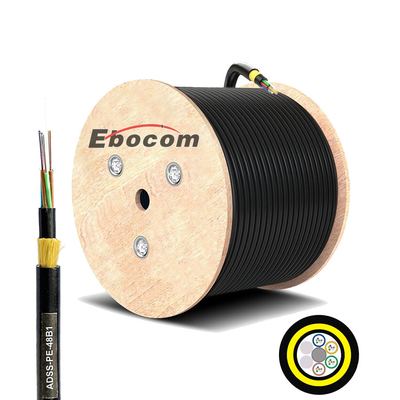

48 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 048 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 1

Applications:

  • Long-distance outdoor communication systems
  • Aerial installations along utility poles and power lines
  • High-voltage areas where metallic cables are unsuitable
  • Data transmission in remote or rural regions
  • Telecommunications and broadband network infrastructure

Technical Specifications:

Specification Details
Product Name ADSS Fiber Optic Cable
FiberType Single Mode (SM) G652D
Core Count 48 Core
Cable Design All-Dielectric Self-Supporting (ADSS)
Reinforcement Material Aramid Yarn
Outer Jacket Material High-density Polyethylene (HDPE) or AT
Tensile Strength Up to 4000 N
Operating Temperature Range -40℃ to+70℃
Attenuation at 1310nm ≤0.36 dB/km
Attenuation at 1550nm ≤0.22 dB/km
Maximum Span Length Up to 1000 meters (depending on specific conditions)
Installation Method Aerial(pole to pole,tower to tower,etc.)
Cable Diameter Customized based on specific requirements
Sheath Color Black (customizable upon request)

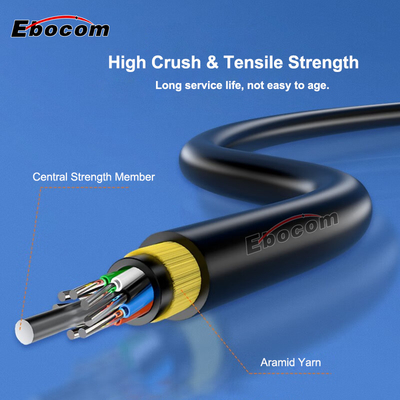

48 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 248 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 3

Advantages of Our ADSS Fiber Optic Cable:

  • Superior Signal Quality: The G652D single-mode fiber ensures exceptional transmission over long distances with minimal signal degradation.
  • Robust Durability: Reinforced with Aramid Yarn, the cable resists environmental challenges like wind, ice, and extreme temperatures.
  • Effortless Installation: Its lightweight design allows for easy handling and quick installation without the need for additional support or conductive elements.
  • Cost Efficiency: The dielectric design negates the need for grounding or bonding, reducing both installation and ongoing maintenance expenses.
  • Versatility in Use: Designed for a range of scenarios, from urban networks to remote communication systems, offering deployment flexibility.

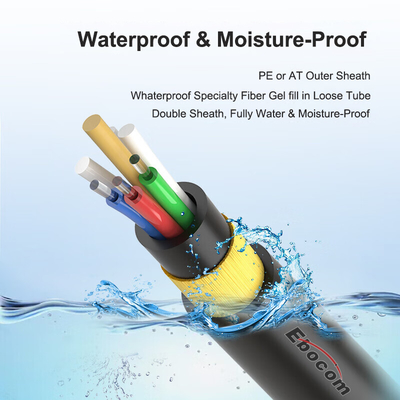

             48 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 4     48 Core ADSS Fiber Optic Cable Single Mode SM G652D Aramid Yarn Double Sheath Double Jackets AT PE 5

Why Choose Us?

  • Expert Manufacturer: With years of expertise in fiber optic cable production, we guarantee high standards of quality and performance.
  • Tailored Solutions: We provide customizable options to fit specific project requirements, including varying cable lengths, core counts, and jacket materials.
  • Global Shipping: We ensure fast, reliable delivery to meet your project deadlines, no matter where you are located.
