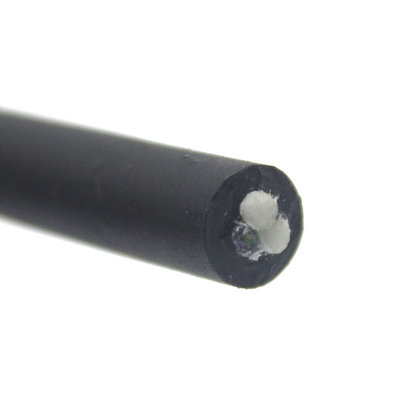

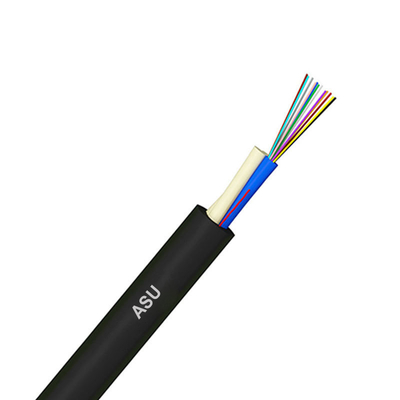

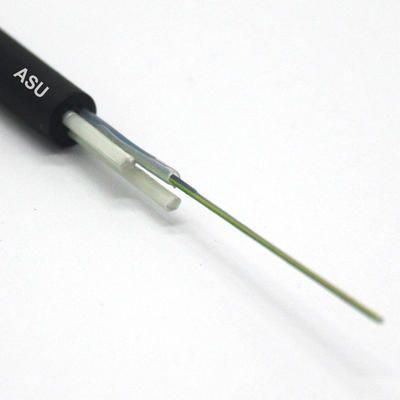

Aerial Self-Supported ASU Mini ADSS 12 Core Fiber Optic Cable Span 80m 100m Manufacturer
100m ADSS Fiber Optic Cable
,80m ADSS Fiber Optic Cable
The ASU Mini ADSS 12 Core Fiber Optic Cable is designed for aerial applications requiring a compact, durable, and self-supported solution. With span options of 80m and 100m, this Aerial Self-Supported (ASU) cable is ideal for medium-distance, high-voltage environments. The all-dielectric design ensures safe operation without metal components, and its 12 core configuration provides consistent, high-speed data transmission.
Product Highlights
- Compact ASU Mini ADSS Design: Self-supported and lightweight, facilitating installation with minimal sag.
- 12 Core Single Mode Fiber: Ensures stable, high-speed data transmission over medium distances.
- All-Dielectric Construction: Safe for high-voltage installations, with no metal parts.
- UV-Resistant Sheath: Durable for outdoor use, resistant to environmental wear.
Key Applications
- Telecommunication Networks: Reliable data transmission for aerial fiber networks.
- Medium-Span Aerial Installations: Perfect for FTTH and FTTB in high-voltage areas.
- Outdoor Infrastructure: Ideal for rural or urban backbone networks.

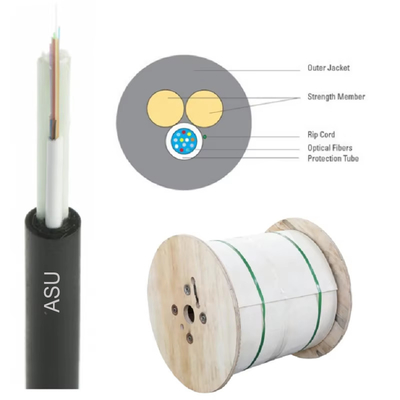

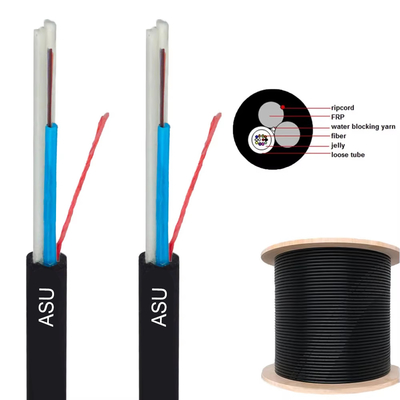

Technical Specifications
| Feature | Specification |
|---|---|
| Product Model | ASU Mini ADSS Fiber Optic Cable |
| Fiber Type | Single Mode (G652D or G657A1 available) |
| Core Count | 12 cores |
| Design | Aerial Self-Supported, Compact |
| Recommended Span Length | 80m or 100m |
| Tensile Strength | 2000 N (varies with span length) |
| Outer Diameter | Compact profile for minimal sag |
| Operating Temperature | -40°C to +70°C |
| Attenuation | 1310nm ≤ 0.35 dB/km, 1550nm ≤ 0.20 dB/km |
| Sheath Material | UV-resistant Polyethylene (PE) |
Advantages of Choosing ASU Mini ADSS Cable
- Efficient Installation: Self-supporting and easy to handle, reducing installation time and costs.
- Reliable in High-Voltage Areas: All-dielectric design ensures safe performance.
- Optimized for Aerial Use: UV-resistant and weatherproof, suitable for long-term outdoor exposure.
