quality PE Single Jacket ADSS Cable 48 Core 96 Core G652D for Networking factory

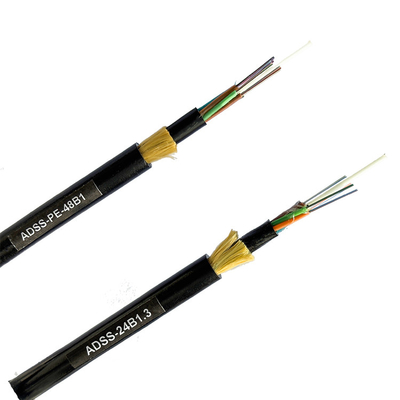

PE Single Jacket ADSS Cable 48 Core 96 Core G652D for Networking

Name: PE Single Jacket ADSS Cable 48 Core 96 Core G652D for Networking
Brand: Shandong Yibo Optronics Technology Co., Ltd.
SKU: ADSS -48B1.3
Price: 0.3 USD
Availability: InStock

Place of Origin:Shandong，China

Brand Name:OEM

Certification:ISO TLC

Model Number:ADSS -48B1.3

Minimum Order Quantity:2000M

Price:EXW $0.3/M

Standard Packaging:1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Delivery Time:5-8 day

Payment Terms:T/T , L/C

Supply Ability:5000KMS/day

Tags:

Self Supporting Aerial Fiber Cable

Single Jacket ADSS Cable

96 Core ADSS Cable

G652D ADSS Cable

FIBER TYPE: G652D/G657A1 A2

FIBER COUNT: 2-288 CORE

STRENGTH MEMBER: FRP

JACKET: PE

JACKET COLOR: BLACK

BRAND: OEM

Product Description

Detailed Specifications & Features

Description

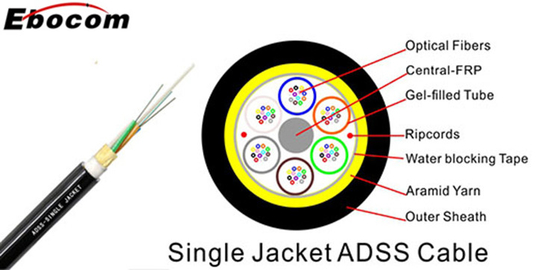

The Fiber Optic cable Type ADSS (All-Dielectric Self-Supporting) Cable with a Single Sheath is engineered to excel in demanding applications, with a primary design focus on impressive spans of 100 to 200 meters (notably, specific models extend this to spans of up to 1,400 meters). This cable stands as a testament to its robust and dependable nature, delivering a dependable solution for high-speed data transmission. Its innovative structure has been meticulously crafted to provide optimal performance and exceptional durability, ensuring that it meets the highest standards of reliability in the field.

Download Data Sheet

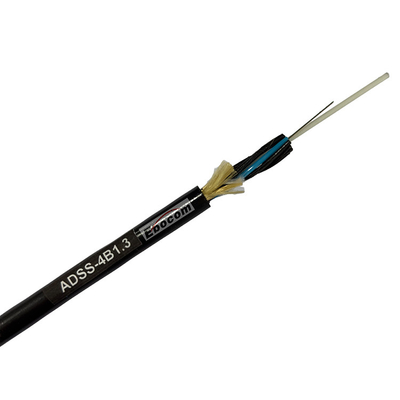

PE Single Jacket ADSS Cable 48 Core 96 Core G652D for Networking 0

Features
1.Gel-Filled Tubes are reverse-oscillated to allow slack for mid-span access - up to 288 fibers in cable
2.Gel-Free Buffer Tube options available
3.Up to 288 fibers
4.Pole-to-pole span lengths up to 1100 feet
5.Single jacket design decreases the diameter and weight when compared to double jacket ADSScable;
6.No separation requirement of ADSS from conductors

Specification

Fiber Count		12	24	36	48	96	144
Fiber Count Per Tube		6	6	6	12	12	12
Loose Tube	Material	PBT
	Water Blocking Material	Fiber Jelly
	Counts	2	4	6	4	8	12
Central Strength Member	Material	FRP Rod (Coated with PE if needed)
Central Strength Member	Counts	2.2	2.2	2.2	2.5	2.5	2.5
Overall Diameter (nom.)(mm)(±0.2)		10.3	10.4	10.4	11	12.3	14.9
Outer Jacket	Material	HDPE, Black
Outer Jacket	Nominal Thickness (mm)	1.6	1.6	1.6	1.6	1.6	1.6
Cable Weight	Kg/Km	73	76	76	86	109	162
Temperature Range	Operation	-30°C~+70°C
	Storage	-30°C~+70°C
	Installation	-10°C~+60°C
