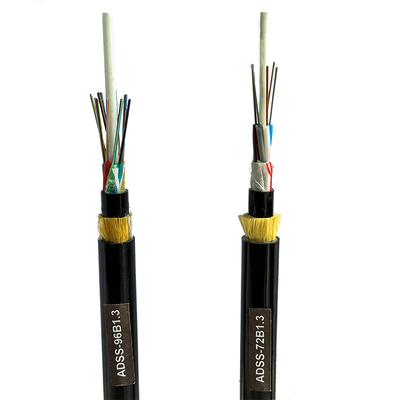

All Dielectric Self Supporting Fiber Optic Cable 24 Core Span 1000m FIBER TYPE G652D/G657A1 A2 For Network Infrastruction
1000m Self Supporting Fiber Optic Cable
,G652D Self Supporting Fiber Optic Cable
Description
Features
- --Stranded loose tube design ensures that the are always free from mechanical strain under the specified loading conditions
- --Double Jacket designs for medium to long span applications and moderate to heavy ice and wind loading conditions
- --No metallic or conductive components, allowing the live-line installation (subject to local regulation)
- --Use for both earth-wires and phase conductors
- --Torsionally-balanced aramid yarn strength elements provide stable cable design
- --UV-resistant polyethylene sheath is compatible with fittings
- --OEM extremely long spans available
ApplicationS
- Utilised for communications by power utilities, telcos, and private network groups
- Designed for installation on distribution and transmission lines
- Capable of being installed in close proximity to conductors if security is a concern
- Suitable for applications, minimizing the need for outages
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |

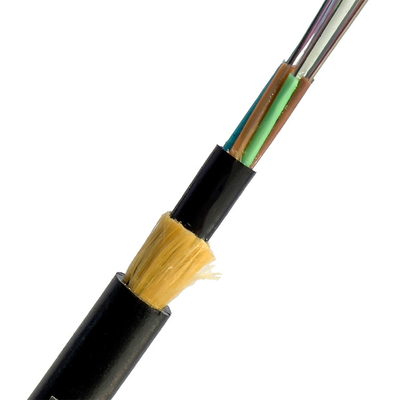

24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
24 Core ADSS All-Dielectric Self-Supporting (ADSS) Fiber Optic Cable Product Description Introducing our High Quality ADSS Fiber Optic Cable , designed to deliver reliable and efficient communication across long distances. This 24 Core ADSS Cable utilizes Single Mode (SM) G652D fibers and is ...

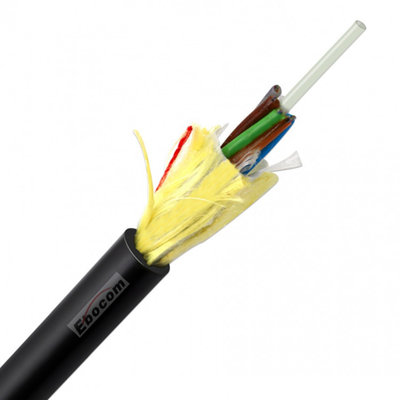

ADSS Fiber Optic Cable 144 Core
Description This "All Dielectric Self-Supporting (ADSS)" cable is designed for short, medium and long distance aerial self-supporting applications. ADSS cable provides a fast and economical deployment method for cable TV operators, telephone companies and electric utilities. It is suitable for ...
72 Core ADSS Fiber Optic Cable Single Jacket For 100M Span Use
Product Overview The 72 Core Single Jacket ADSS Cable is a cost-effective, high-performance aerial fiber solution designed for short and medium-span applications. By utilizing a 6-loose-tube structure and a streamlined Single Jacket (SJ) design, this cable offers a reduced diameter and lighter ...

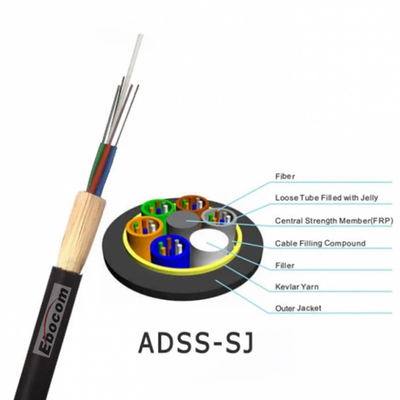

ADSS Fiber Optic Cable 24 36 48Cores Single Double PE Jacket for Networking Cable
