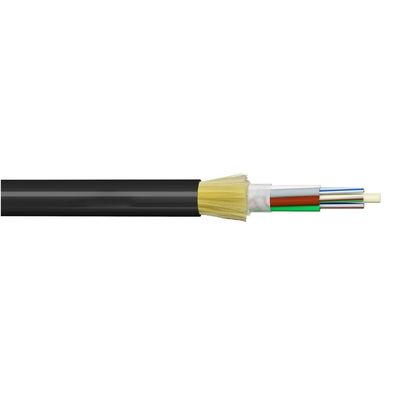

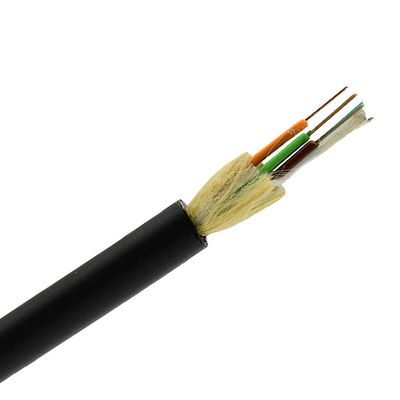

Single jacket ADSS 24 Core All Dielectric Self Supporting Fiber Optic Cable – PE Jacket Black for Long Span Aerial Installation

  • Single jacket ADSS 24 Core All Dielectric Self Supporting Fiber Optic Cable – PE Jacket Black for Long Span Aerial Installation
  • Single jacket ADSS 24 Core All Dielectric Self Supporting Fiber Optic Cable – PE Jacket Black for Long Span Aerial Installation
  • Single jacket ADSS 24 Core All Dielectric Self Supporting Fiber Optic Cable – PE Jacket Black for Long Span Aerial Installation
Place of Origin Shandong
Brand Name Ebocom
Certification ISO
Model Number ADSS
Minimum Order Quantity 3KM
Price USD0.1-0.2
Delivery Time 5-8
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 60km/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Aerial Communication Sheath Material PE/AT
Using Span 50-1000 Meter Packing Wooden /Carton Drum
Product Name SJ ADSS Certification ISO
Core 24 Cores
Highlight

ADSS fiber optic cable 24 core

,

all dielectric self supporting cable

,

PE jacket black ADSS cable
Leave a Message
Product Description

Product Description:

Overview
ADSS (All Dielectric Self Supporting) fiber optic cable is specially designed for aerial installation without the need for metallic support. Its all-dielectric construction ensures excellent electrical insulation, making it safe for installation along high-voltage power lines. The cable is lightweight yet has high tensile strength due to aramid yarn reinforcement, allowing for long-span installations up to 2000 meters.



Key Features

  • All Dielectric Structure: No metallic components, safe for high-voltage environments.

  • High Tensile Strength: Aramid yarn strength member supports long spans without sagging.

  • Weather & UV Resistant: PE or AT sheath protects against harsh sunlight, rain, and wind.

  • Lightweight Design: Easy to handle and install, reduces installation cost.

  • Long Service Life: Stable performance from -40°C to +70°C.

  • Customizable: Available in SM (G.652D/G.657A1) or MM (OM1/OM2/OM3) fiber types.

Applications

  • High-voltage transmission line communication systems

  • Long-span aerial installations in rural and mountainous areas

  • FTTx and ISP backbone projects

  • Railway, highway, and industrial communication networks

  • Areas prone to lightning and electrical interference



Technical Specifications

Parameter Specification
Fiber Type Single Mode (G.652D / G.657A1 / G.657A2) or Multi Mode (OM1 / OM2 / OM3)
Core Count 24 cores
Cable Structure Loose tube, gel-filled, aramid yarn reinforced
Outer Sheath Black PE or AT (Anti-Tracking)
Tensile Strength 1000–15000 N (customized by span)
Span Length Up to 2000 meters
Operating Temperature -40°C to +70°C
Installation Aerial, pole-to-pole
Standards ISO

Why Choose Us

  • 15+ Years of Experience: Professional manufacturer of ADSS cables.

  • Strict Quality Control: 100% testing for tensile, temperature, and optical loss.

  • Global Projects: Exported to over 60 countries.

  • Customization Available: Fiber type, sheath type, and span length according to requirements.

  • Fast Lead Time: Large stock of common specifications for quick delivery.



Packing & Delivery

  • Standard export wooden drum or iron-wooden drum

  • Length per reel: 2km–6km (customized available)

  • Delivery via sea, air, or express (DHL/UPS/FedEx)
