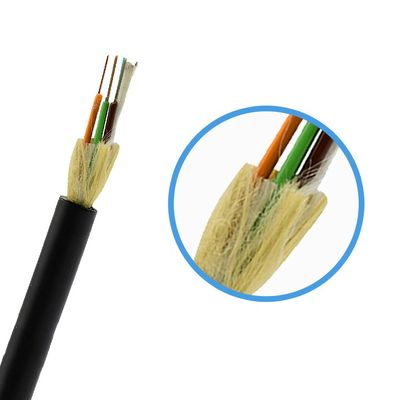

All Dielectric Self Supporting Fiber Optic Cable 48 96 Core Span100m SJ For Network Construction
ADSS fiber optic cable 96 core
,dielectric fiber optic cable 100m span
,self-supporting fiber cable network construction
Description
Features

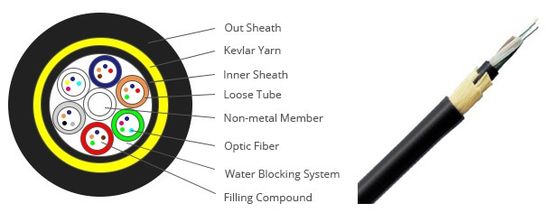

- --Multi-strand loose tube design ensures the cable remains mechanically strain-free under specific load conditions.
-Double-jacket design is suitable for medium-to-long span applications and moderate to severe snow, ice, and wind loads.
-No metal or conductive parts, allowing live installation (subject to local regulations).
-Can be used for both ground and phase conductors.
-Torsionally balanced aramid yarn strength elements provide a stable cable design.
-UV-resistant polyethylene jacket compatible with accessories.
-OEM extra-long spans available.
ApplicationS
Ideal for communications with power companies, telecommunications companies, and private network groups.
Designed for installation on distribution and transmission lines.
Can be installed close to conductors (where safety is a concern).
Suitable for applications where the need for power outages is minimized.
Physical Parameters
| Span(m) | Ice+Wind:0mm+35m/sec | Ice+Wind:12mm+30m/sec | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) | Max.Working Tension(N/lb) | Max .Sag(%) | |
| 100 | 13.9/5.472 | 152/102.01 | 7578/1704 | 2 | 13.8/0.543 | 150.0/100.67 | 6621/1489 | 2 |
| 200 | 14.3/0.562 | 161/108.05 | 10430/2346 | 3 | 14.1/0.555 | 157.0/105.37 | 9000/2024 | 3 |
| 400 | 15.9/0.625 | 199/133.56 | 23221/5223 | 3 | 15.4/0.606 | 187.0/125.50 | 19225/4331 | 3 |
| 500 | 16.7/0.657 | 220/147.65 | 30590/6881 | 3 | 16.1/0.633 | 204.0/136.91 | 24885/5598 | 3 |
| 600 | 16.3/0.641 | 209/140.27 | 26952/6063 | 4 | 15.7/0.618 | 196.0/131.54 | 22154/4983 | 4 |
| 800 | 16.5/0.649 | 216/144.97 | 29452/6625 | 5 | 15.9/0.625 | 201.0/134.90 | 24042/5408 | 6 |
| 1000 | 16.7/0.657 | 221/148.32 | 31271/7034 | 6 | 16.1/0.633 | 204.0/136.91 | 24407/5490 | 6 |
