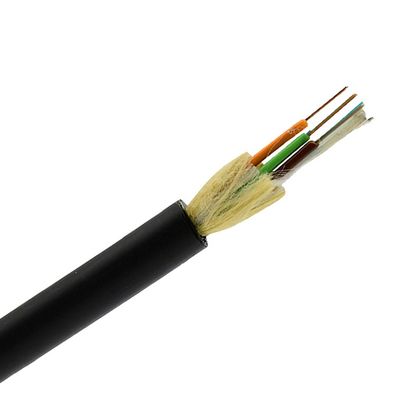

Aerial Self-Supporting Cable ADSS 24 Core Single Mode for 100m Span With PE Jacket
ADSS fiber optic cable 24 core
,single mode ADSS cable PE jacket
,self-supporting fiber cable 100m span
Product Description
The 24 core ADSS (All-Dielectric Self-Supporting) fiber optic cable is specially designed for outdoor aerial installations up to 100 meters span. Built with single mode fibers (ITU-T G.652D), it provides stable and high-speed optical transmission for telecom, broadband, and smart grid communication.
Unlike some suppliers who use polyester yarn as a cheaper substitute, our ADSS cables use genuine aramid yarn to achieve superior tensile strength, long-term stability, and resistance against harsh environments. Customers can choose single jacket for standard installations or double jacket for areas requiring extra protection.
Main Features
-
24 Core Single Mode Design: Suitable for backbone and distribution networks.
-
100m Span Capability: Reliable self-supporting structure for medium-span applications.
-
Single & Double Jacket Options: PE sheath available in single or double protection.
-
True Aramid Yarn Strength Member: Ensures durability and prevents fiber damage under load.
-
All-Dielectric Construction: Safe installation near power lines, no grounding required.
-
Weather-Resistant: UV, water, and temperature resistant for long service life.
Applications
-
Aerial telecom and broadband network deployment
-
Power grid communication systems
-
Long-distance security and CCTV monitoring projects
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | Single Mode (G.652D) |
| Fiber Count | 24 cores |

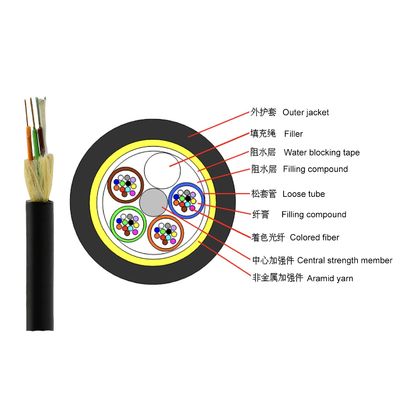

| Structure | Loose tube, FRP + aramid yarn, PE sheath |
| Span Length | 100 meters |
| Jacket Options | Single Jacket / Double Jacket |
| Strength Member | FRP + Genuine Aramid Yarn |
| Application Method | Aerial, self-supporting |
